Services/Footbridges and access steelwork
Footbridges, catwalks, platforms, pipe racks and pipe bridges, hop-over stairs, ladders and stair towers. Drawn to the standard the client works to, from the approval set to the shop, transport and the lift.
What comes back, stage by stage. Take the stages you need.
| Approval | Site plan and long section, GA, sections, bearings, approaches, stairs and ramps. |

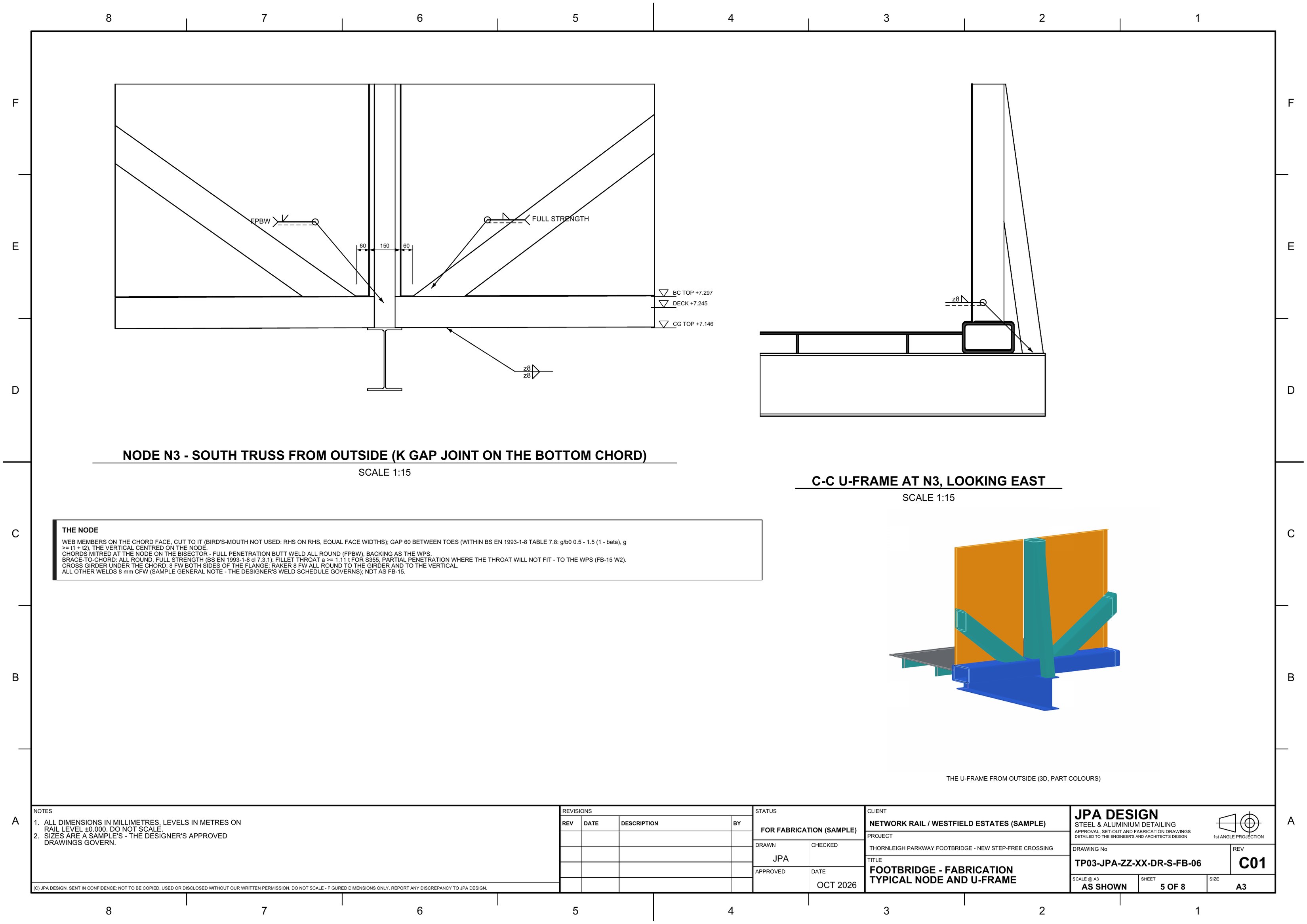

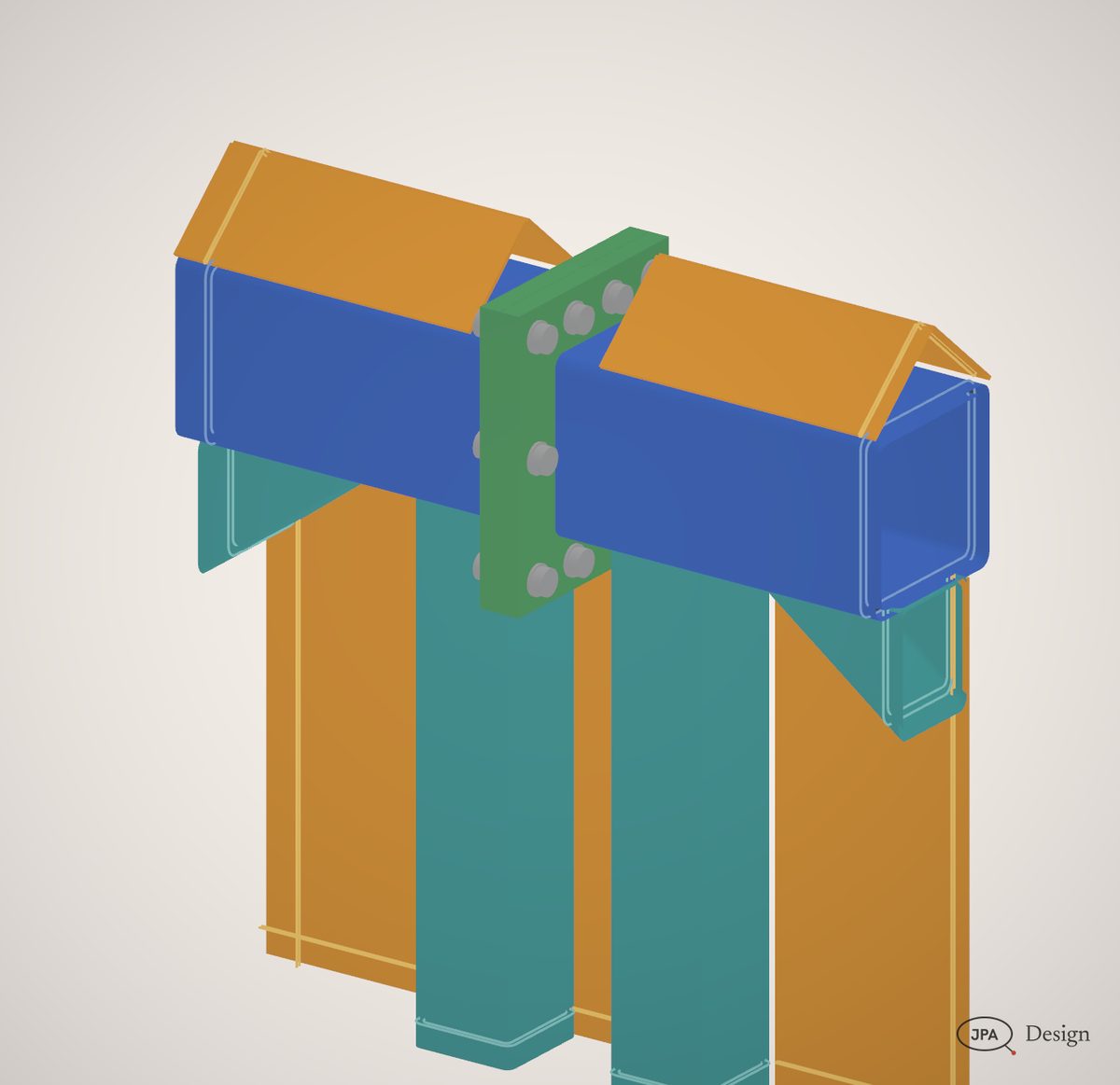

| Fabrication | Set-out and camber, segment assemblies, splices and nodes with weld symbols, plates and DXFs. |
| Transport and erection | Segments sized for the road, trial erection, the lift. |
| Checks | Gaps, guarding, headroom and the standard’s limits, reported on every build. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 5 sheets, 2 MB. Ask for the full pack.
TP03Sample project
A 40 m half-through truss footbridge over a railway

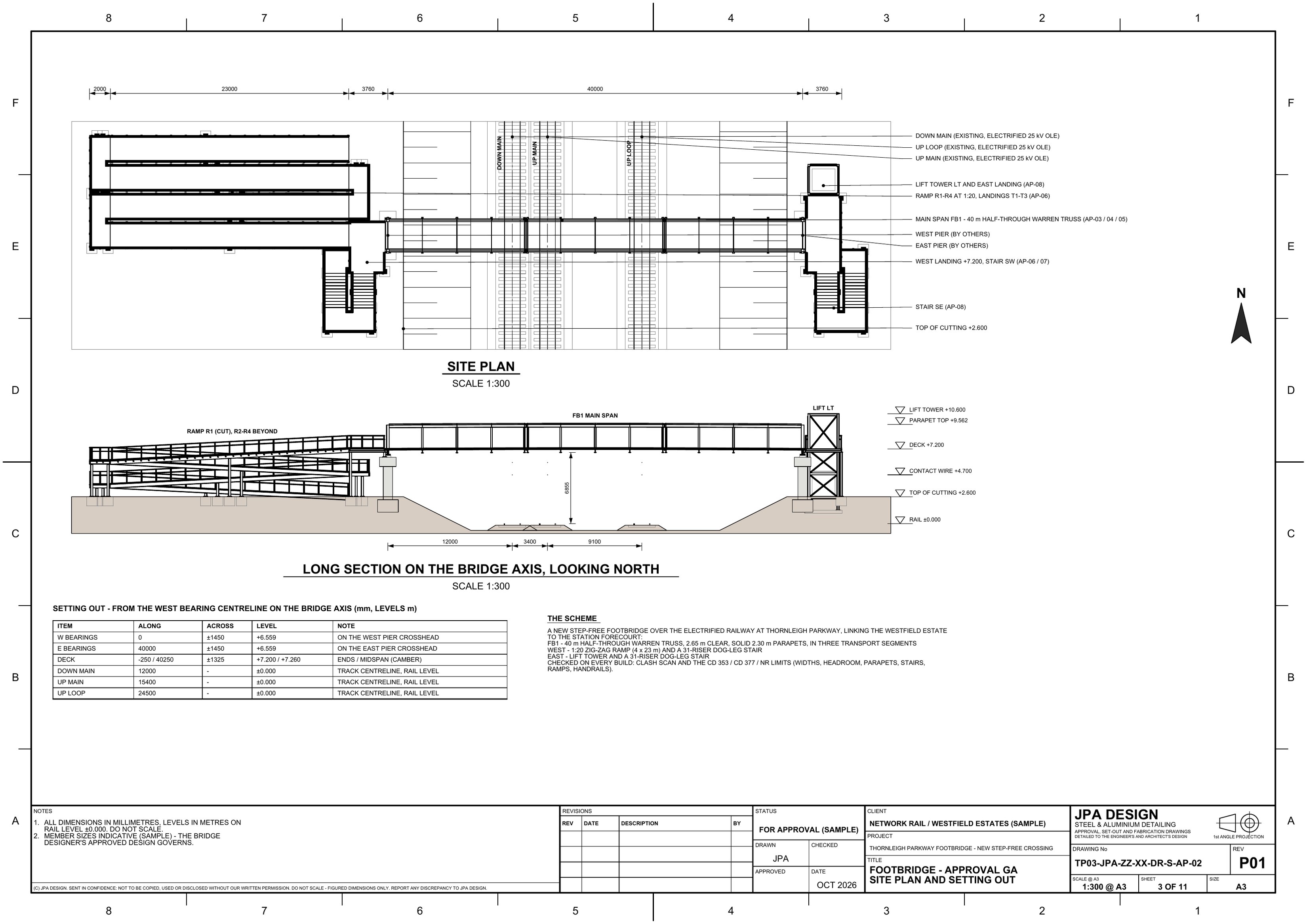

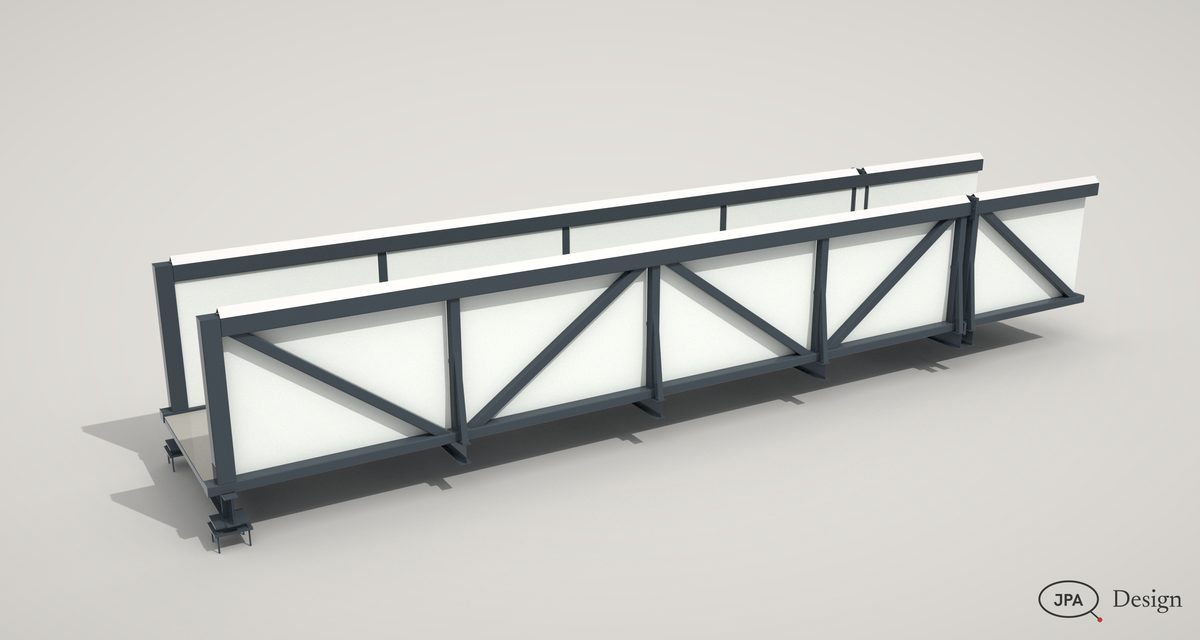

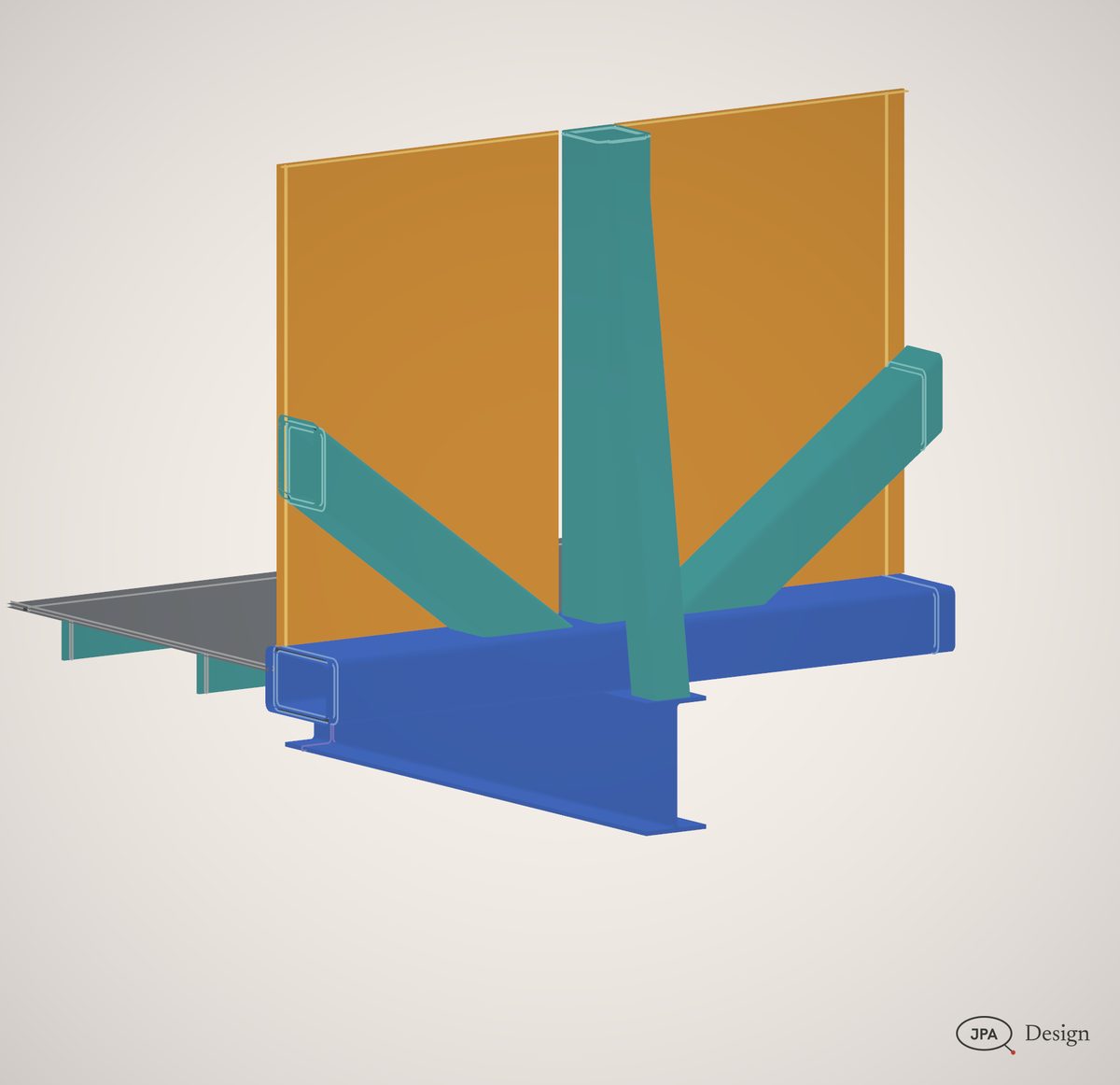

A cambered Warren truss in three transport segments, U-frame cross girders under the bottom chords, a ramp and stairs at one end and a lift and stair at the other, to Network Rail and highways standards.
Open the sheet
Open the sheetHF08Sample project
Catwalks, hop-overs and a stair tower round eight silos

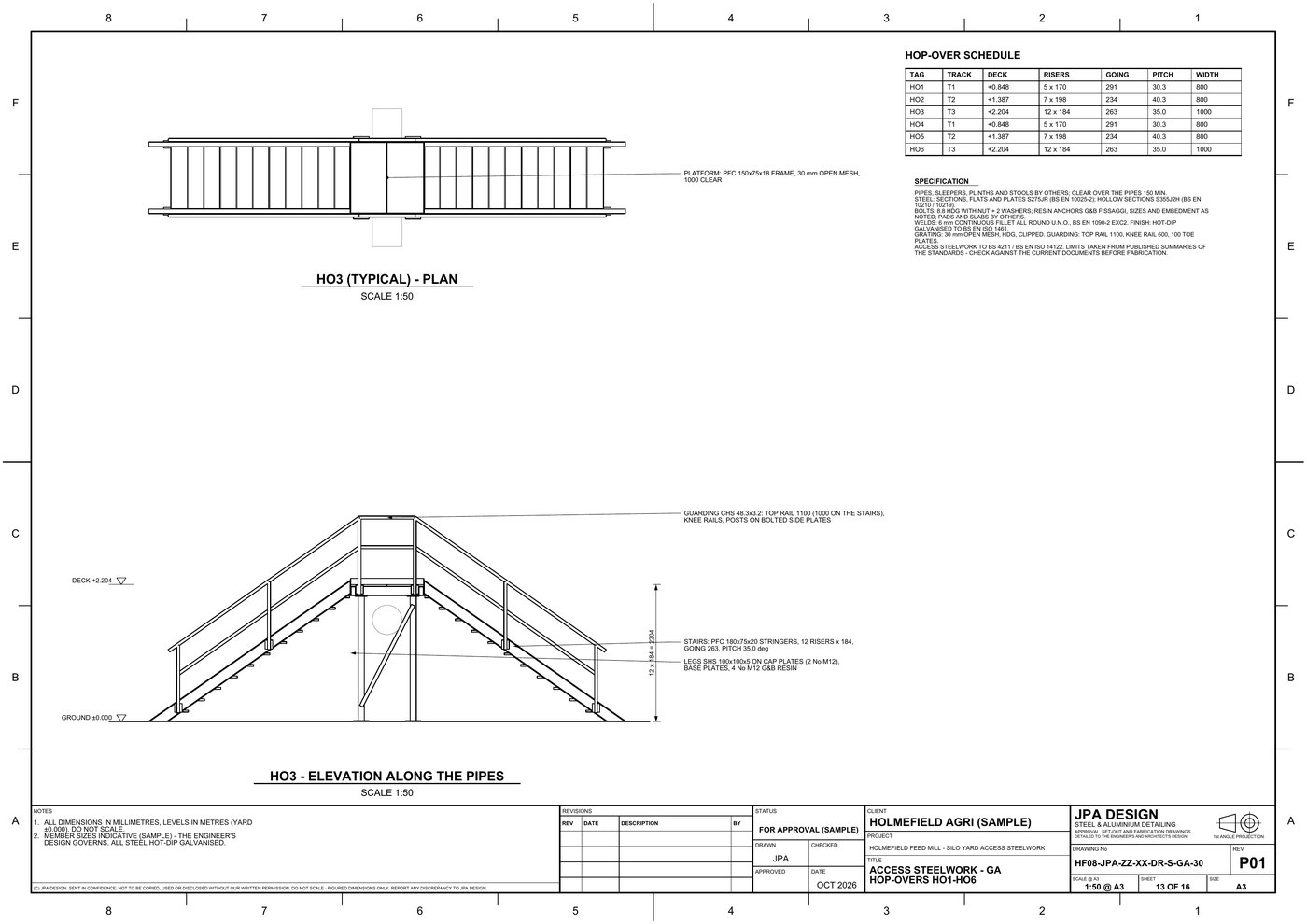

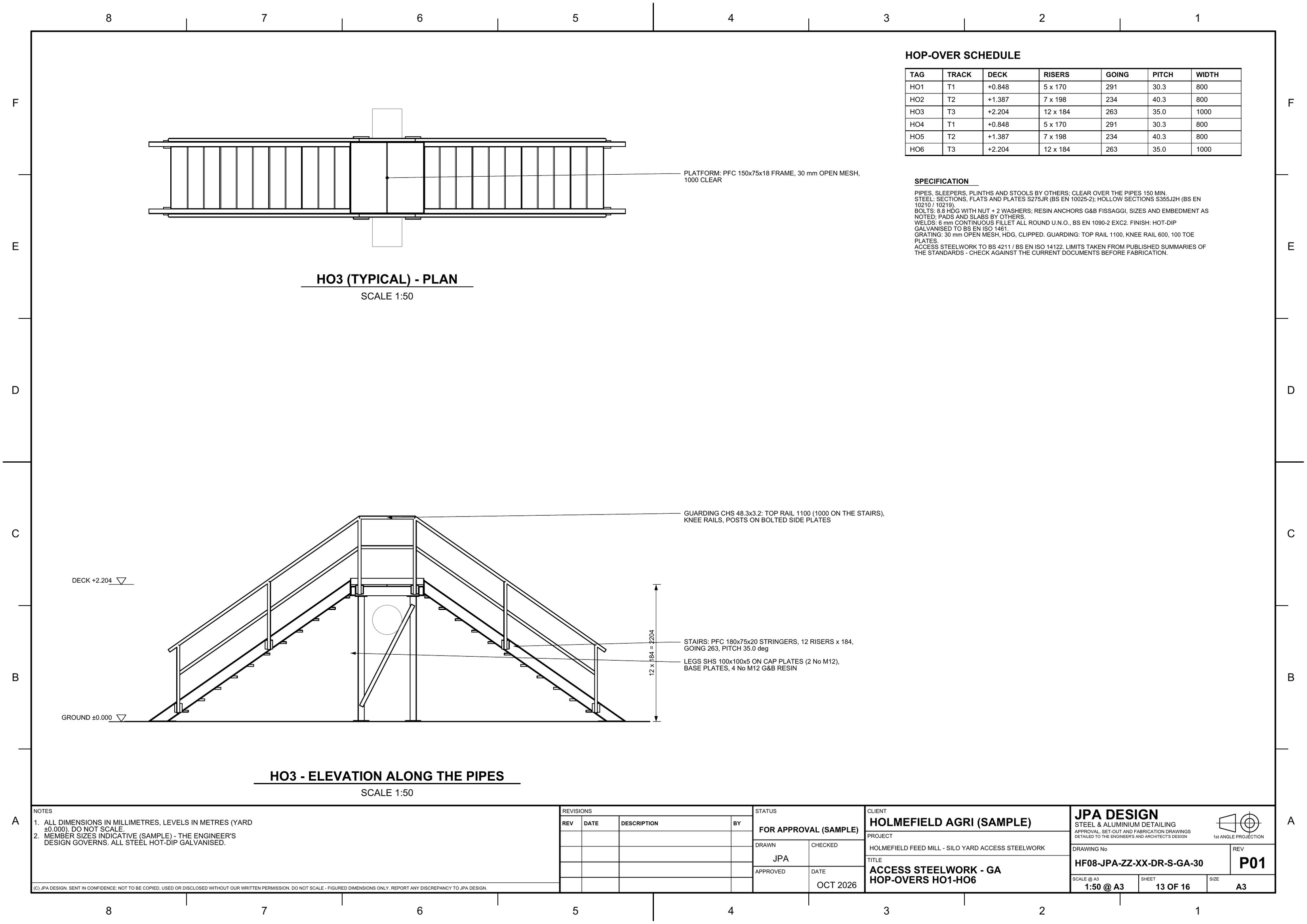

Truss catwalks between the silo tops, an elevator tower with a conveyor gallery, and hop-over stairs across three pipe tracks.
Open the sheetFixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| Approval setGA, sections, bearings, approaches | £295 | 2 days |
| Fabrication packAssemblies, splices, nodes, plates, welds | quoted per job |
Your engineer designs the steel; the drawings follow that design.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
