Services/Balustrades and handrails
Glass, bar and post-and-panel balustrades, podium and roof guarding, wall and stair handrails. Set out run by run from the fixings you have, checked to Approved Document K and BS 6180, drawn a sheet per mark.
What comes back, stage by stage. Take the stages you need.
| Set-out | Every post set out run by run off the slab edge, upstand or stair nosings, with the fixing into what it fixes to. |
| Approval | Elevations of every run, sections through the fixing, the handrail and the infill, 3D views of each type. |
| Fabrication | A sheet per post, panel and rail mark with its parts list, plates with DXFs, cut list and bar nesting. |
| Checks | Guarding heights, 100 mm sphere, handrail heights and extensions, reported on every build. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 4 sheets, 1 MB. Ask for the full pack.
AQ15Sample project
Side-fixed post-and-panel balustrades, podium railings and gates
On the courtyard side of block A, every concrete balcony carries a side-fixed post-and-panel balustrade; round the podium garden, railings on piers with gates at the stairs. Each run set out off the slab edge it fixes to.
MC01Sample project
Three balustrade options drawn for the client to choose

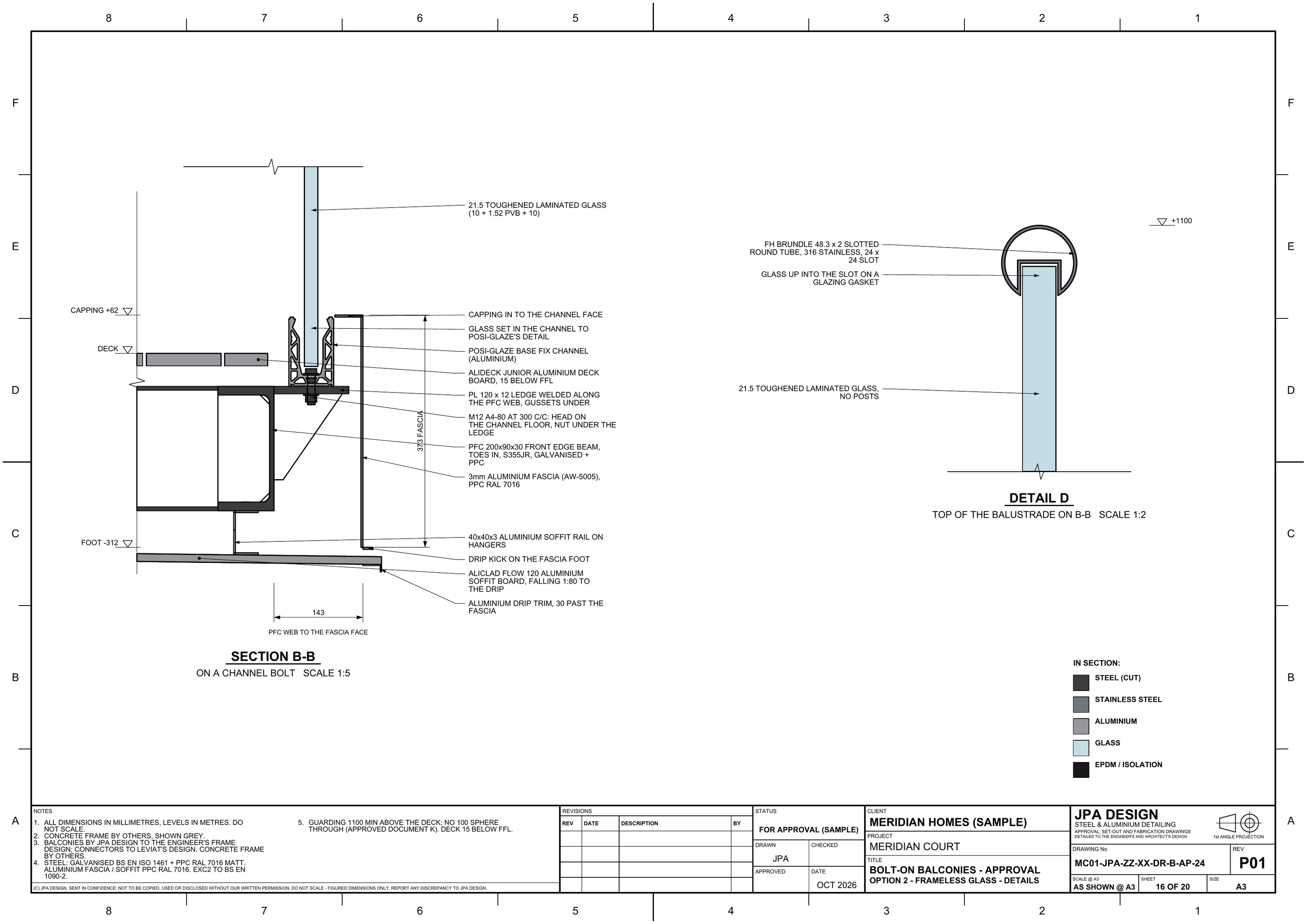

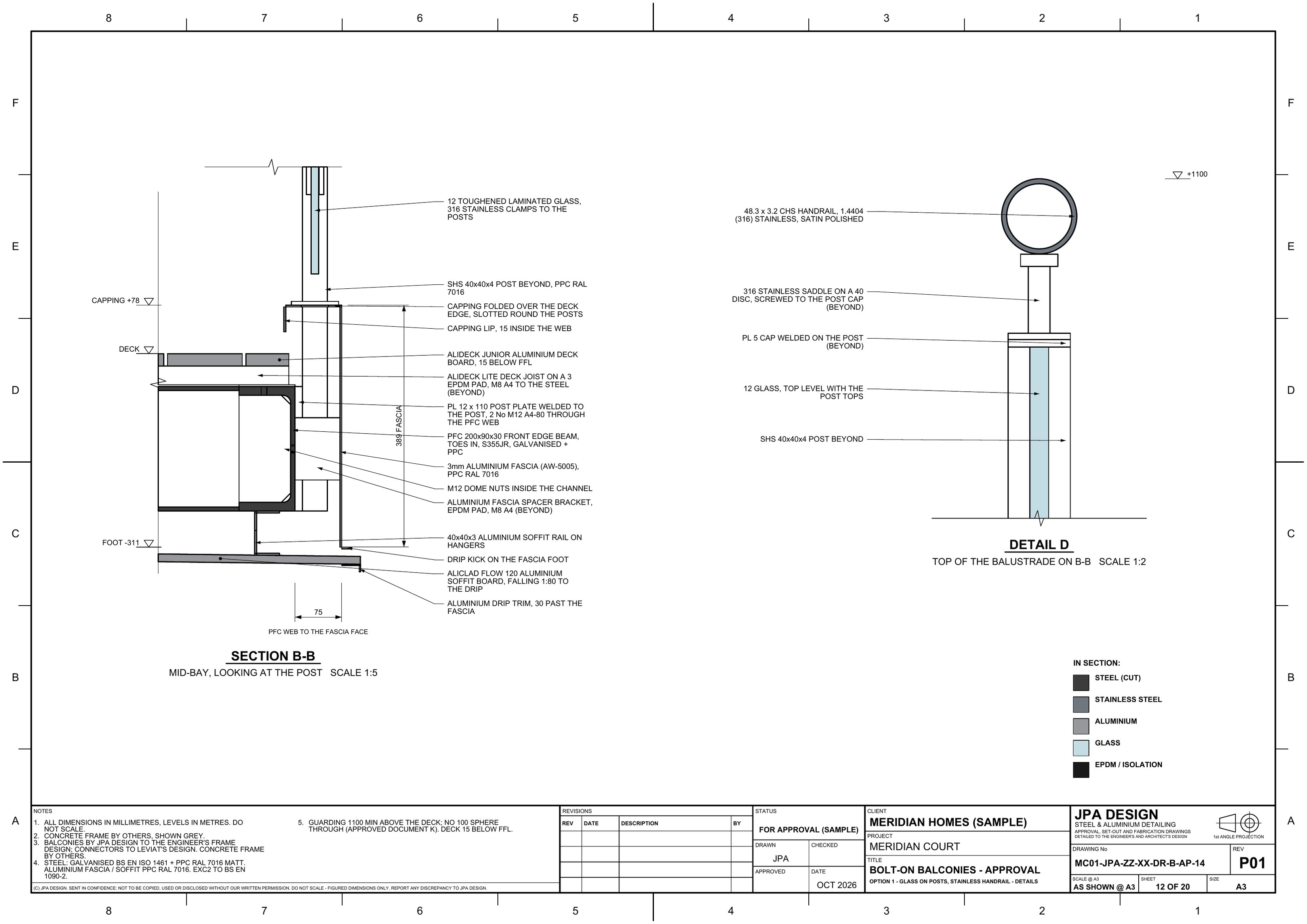

Glass on posts with a stainless handrail on saddles, frameless glass in a base channel, and vertical bars: each drawn as an approval option, with sections through the fixing and the handrail at 1:5.
Open the sheet
Open the sheetFH12Sample project
Stainless post-and-glass guarding to a helical stair and its void

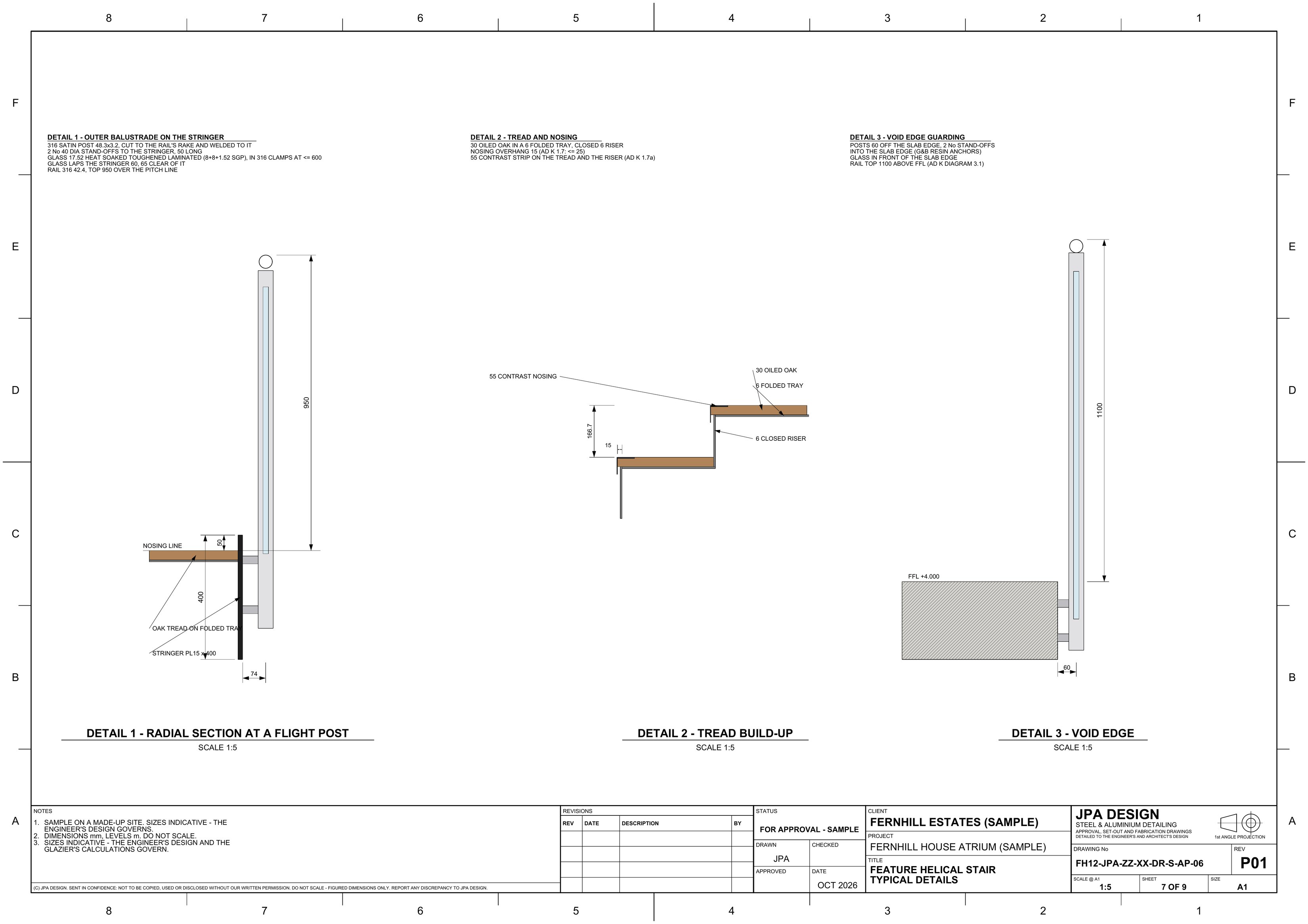

Glass on stainless posts following the helix, round the landing and the void edge, the handrail held a constant height over the pitch line, every post set out by angle from riser 1.
Open the sheetFixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| Approval setElevations of every run, sections, 3D views | £295 | 2 days |
| Approval + fabricationPer balustrade type: marks, plates and DXFs, cut list | £595 | 3 days |
| Set-out onlyPosts and fixings set out for the installers | £250 | next day |
Your engineer designs the steel; the drawings follow that design.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
