Services/Stairs
Feature and helical stairs, escape and external stairs, stair towers and the guarding round them. Every flight set out in elevation off its nosings, every rise and going checked to Approved Document K.
What comes back, stage by stage. Take the stages you need.
| Approval | GA plan, developed stringer elevations, sections, the guarding, 3D views and the AD K check sheet. |
| Set-out | Each flight set out in elevation off its nosings and pitch line, landings and fixings to the structure. |
| Fabrication | Stringers developed flat, treads and landings, a sheet per mark, plates and DXFs, cut list. |
| Site | Erection sequence and lifts for stair towers and big flights. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 6 sheets, 2 MB. Ask for the full pack.
FH12Sample project

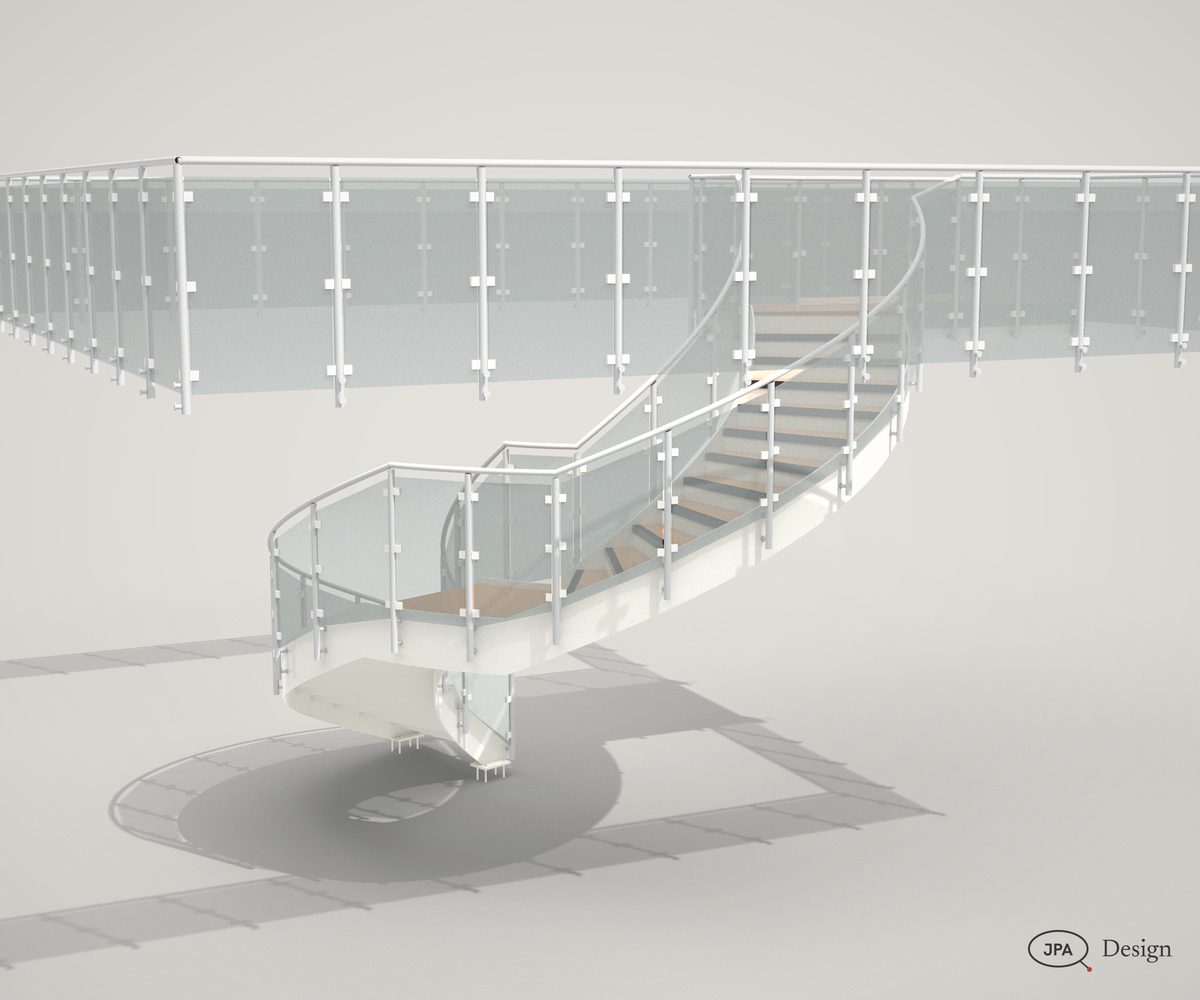

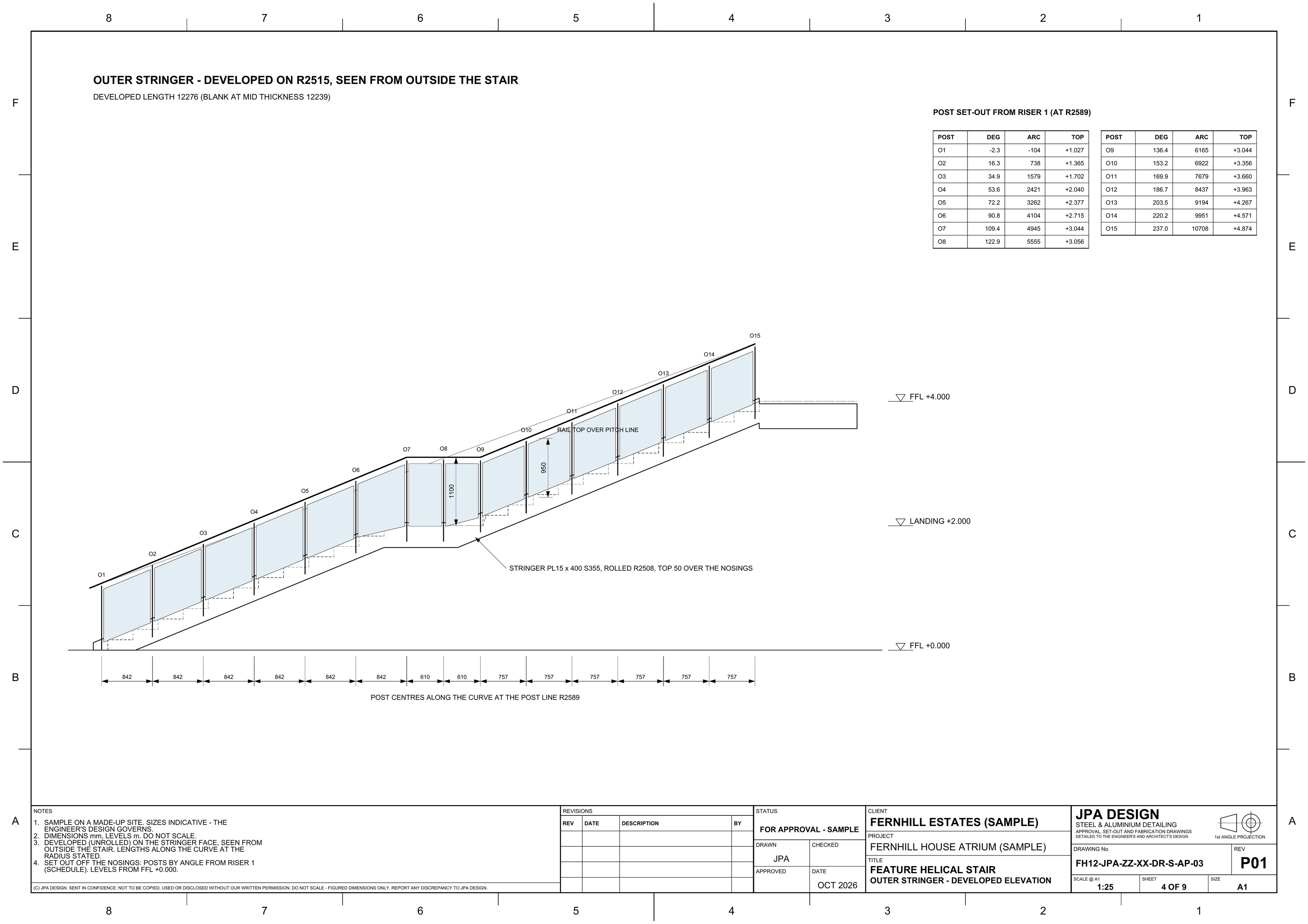

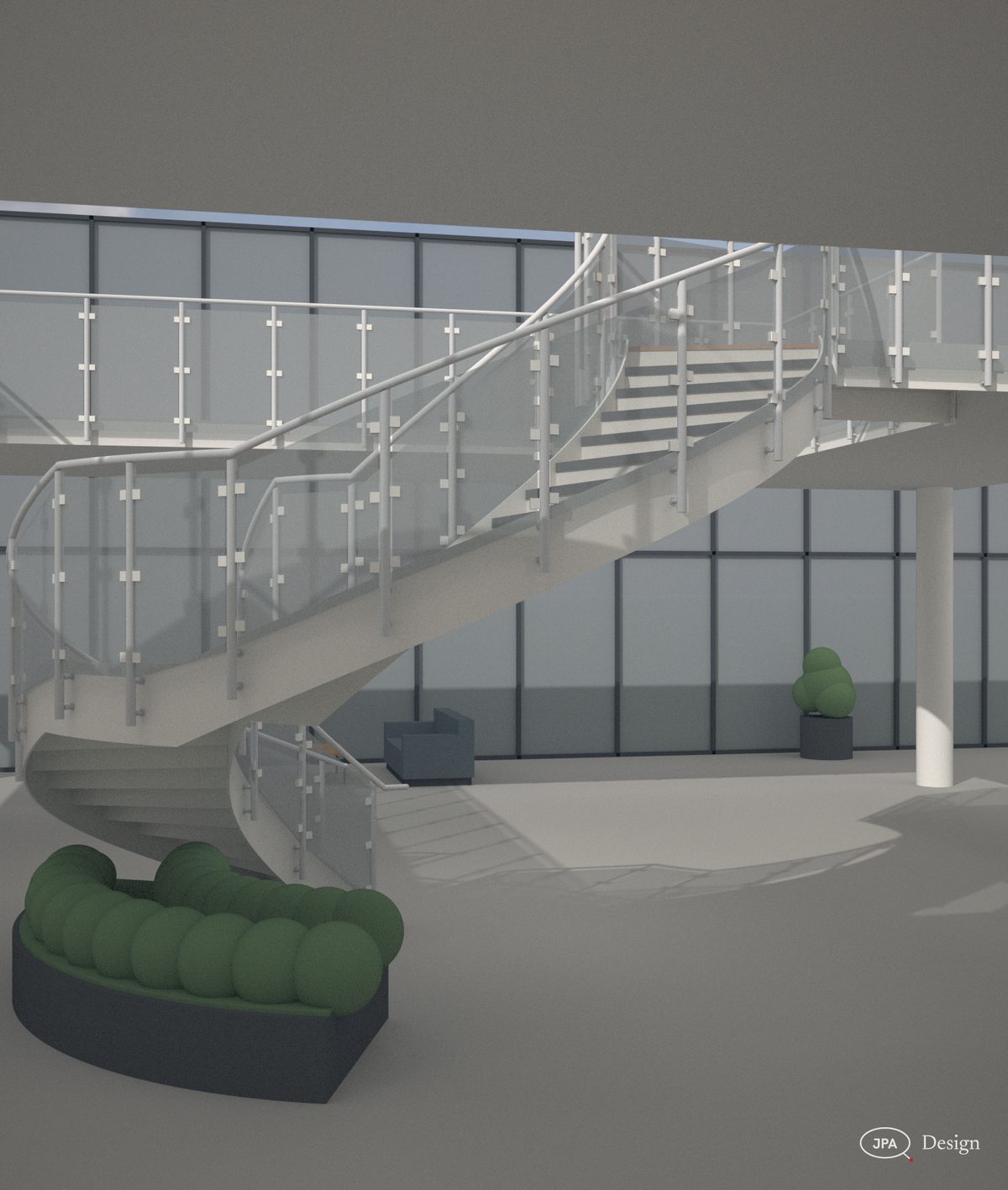

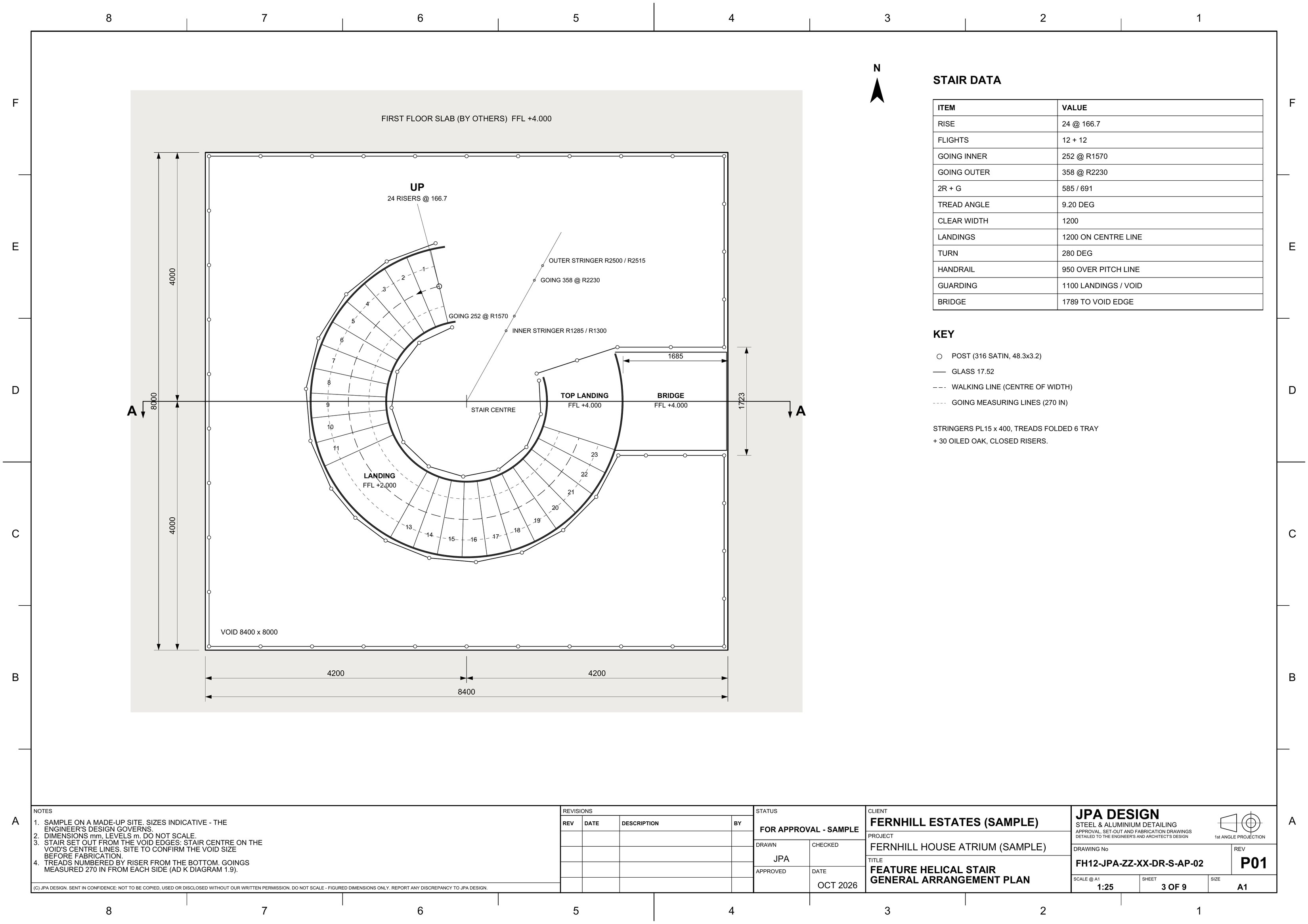

A steel helical stair in a reception void
A 280-degree helix between two floors, 12 + 12 risers of 166.7, plate stringers cut from developed blanks, oak treads, and a short bridge to the void edge. Tapered goings checked 270 in from each side to AD K.
Open the sheet
Open the sheetAQ15Sample project

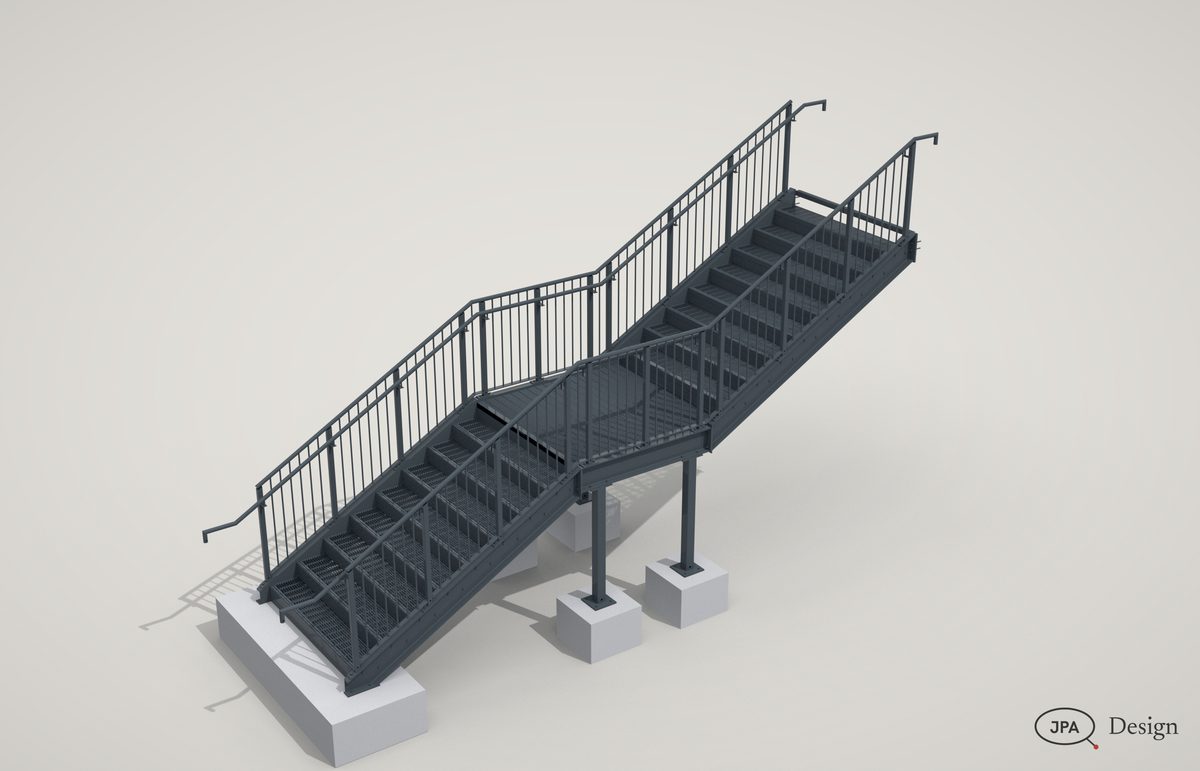

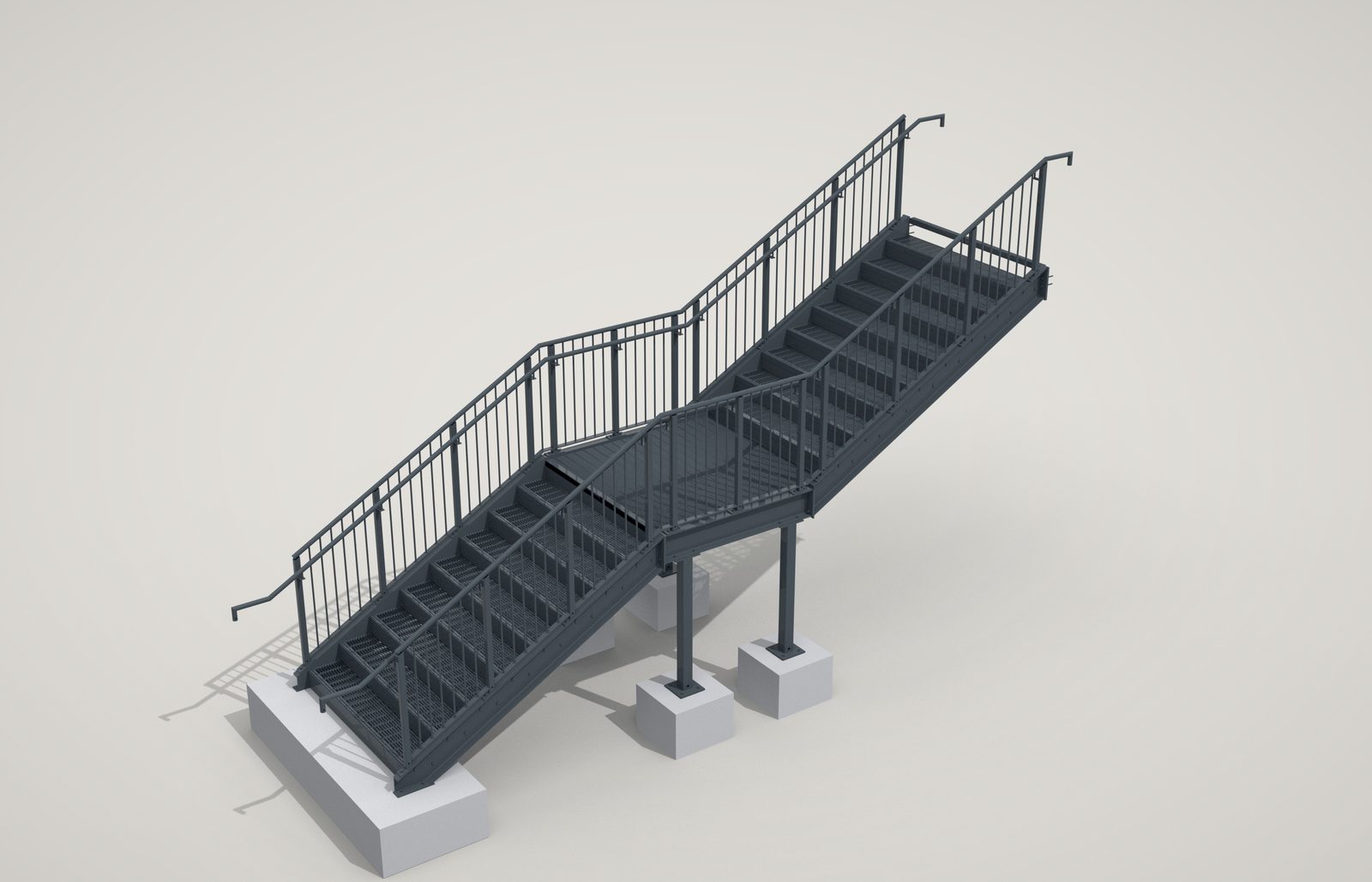

External stairs from the street to the podium garden
Two dog-leg stairs from the street to the podium, open-grating treads on plate stringers, bar guarding and handrails both sides, standing on their own pads.
HF08Sample project

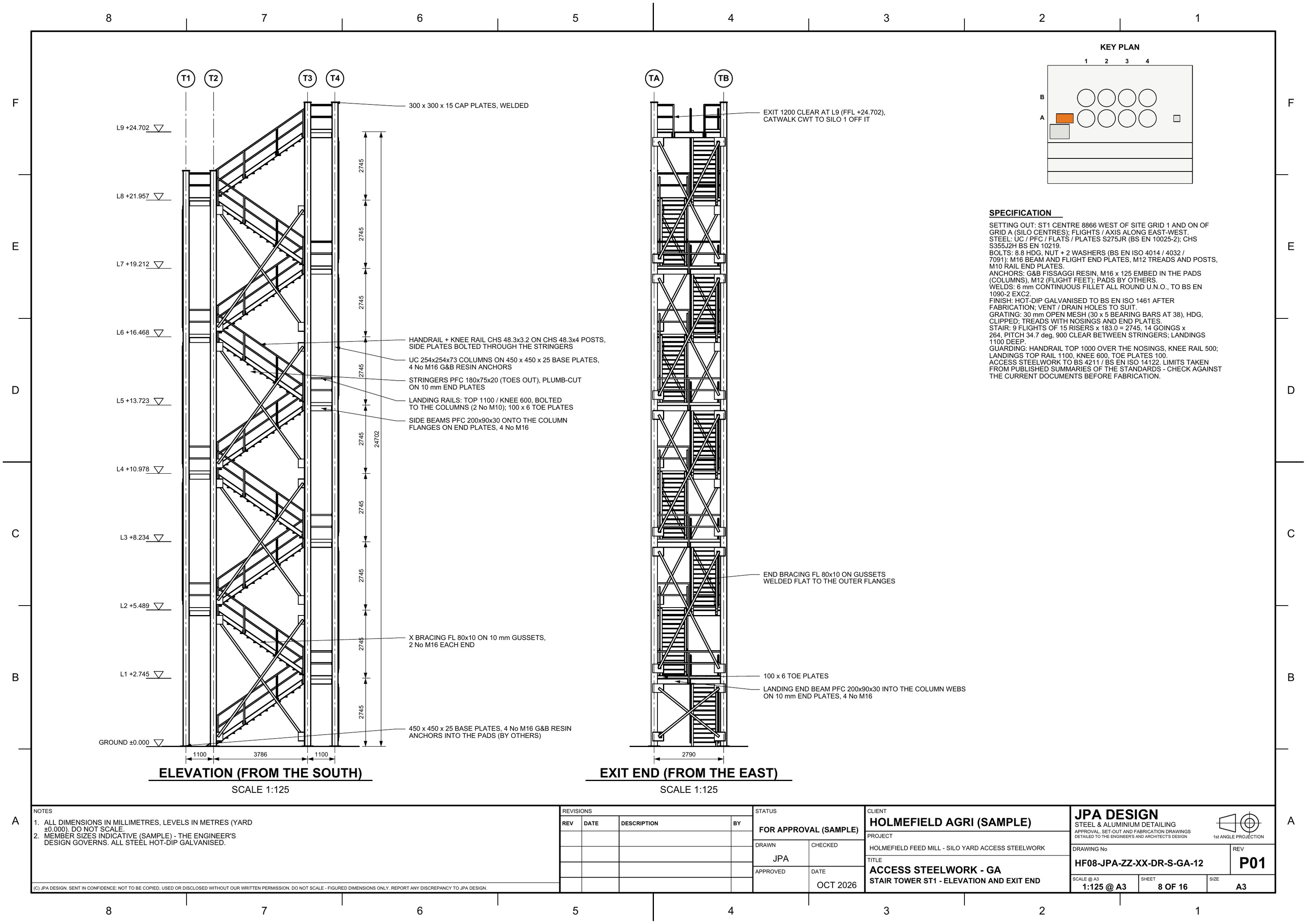

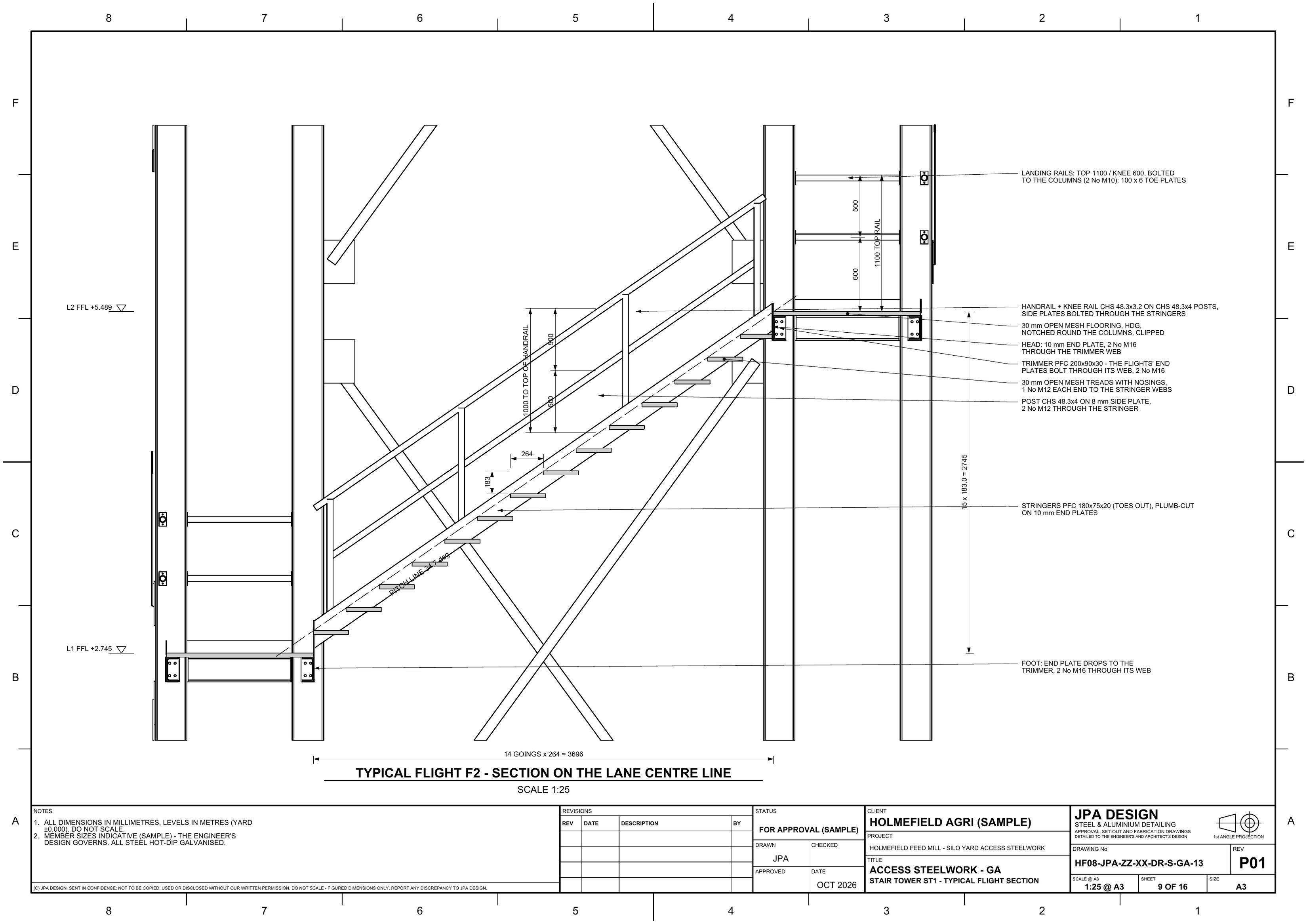

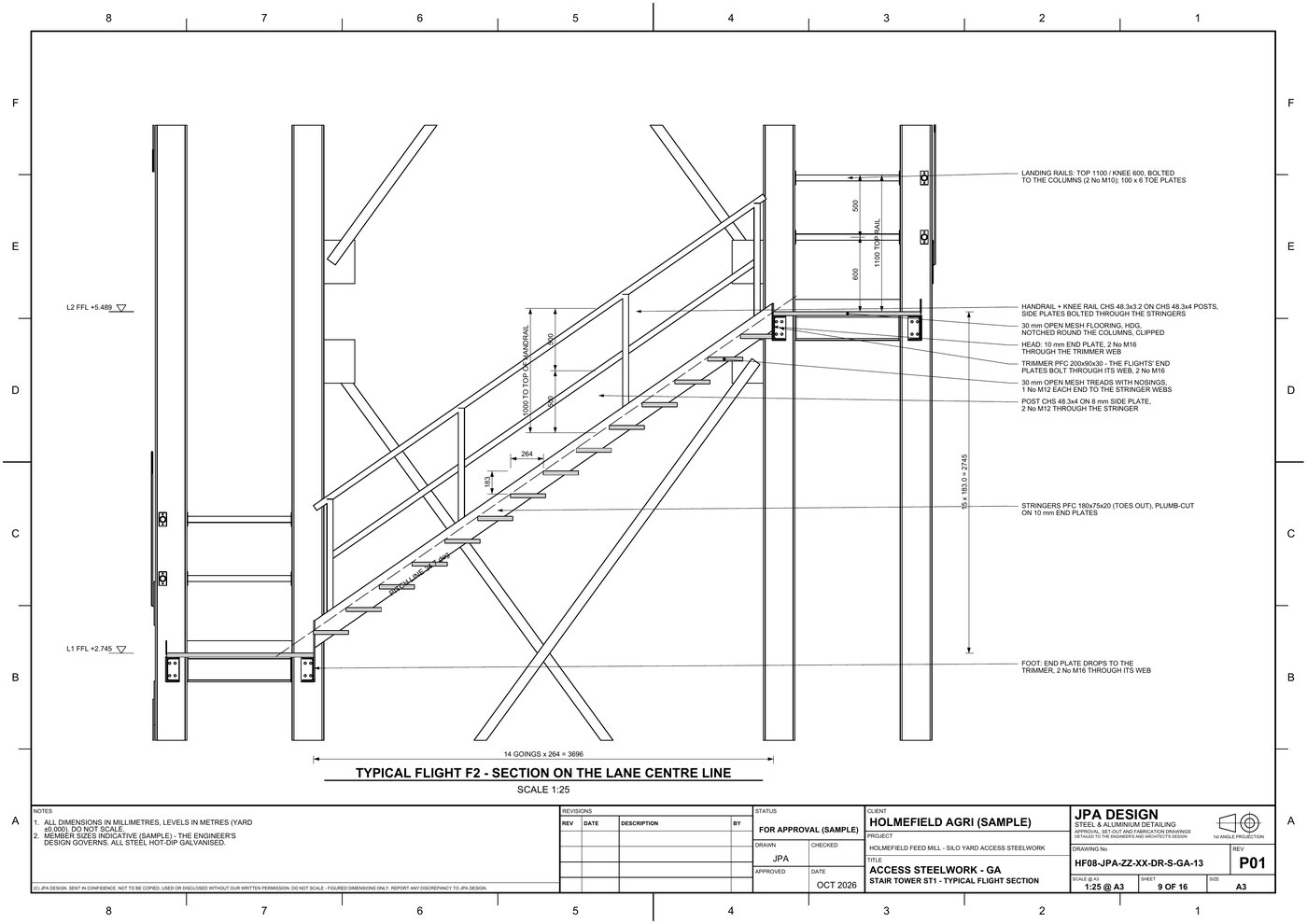

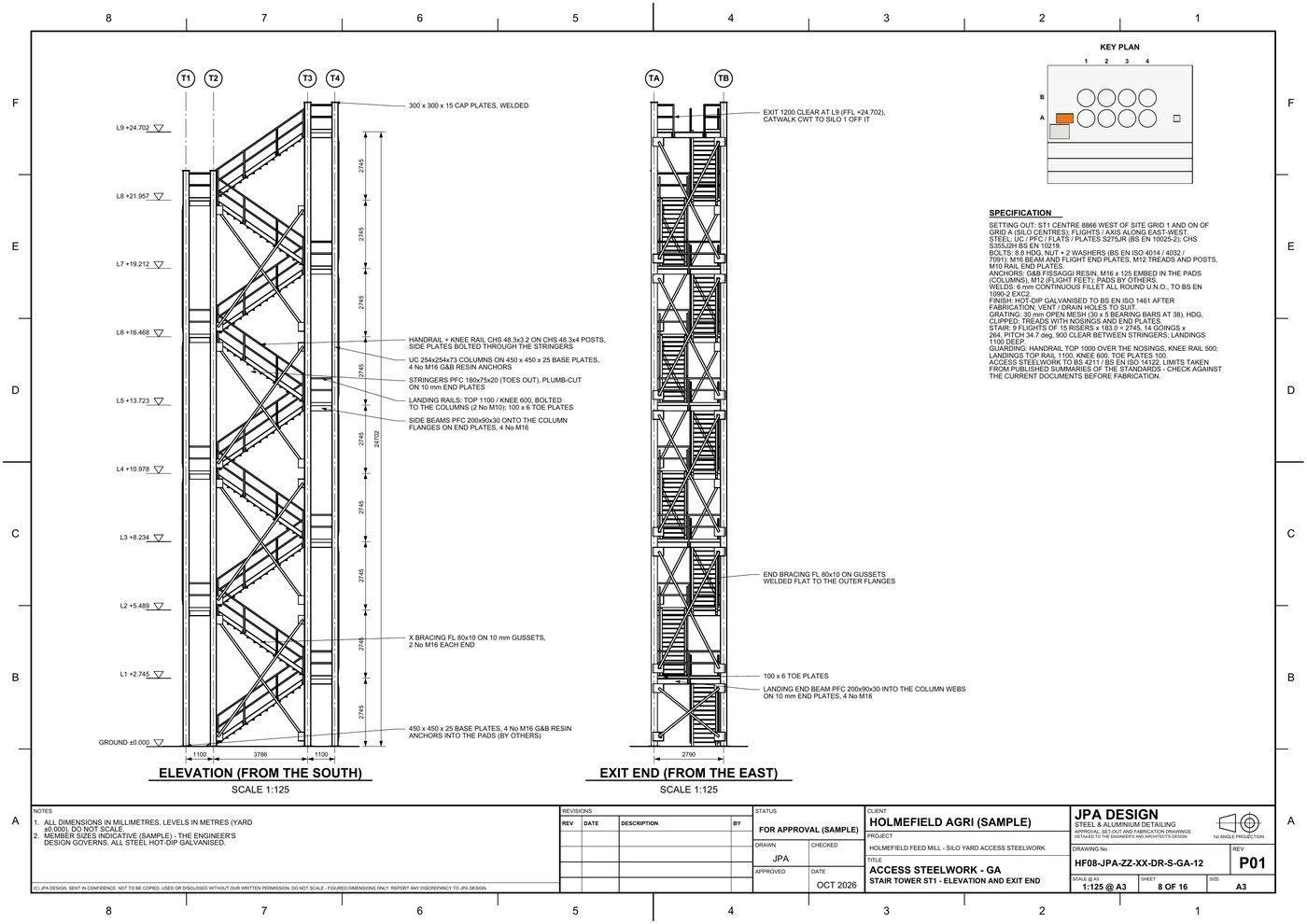

A 24.7 m stair tower to the silo tops
Nine switchback flights in a braced tower, landings at the catwalk levels, each flight set out in section on its own line.
Open the sheet
Open the sheetTP03Sample project

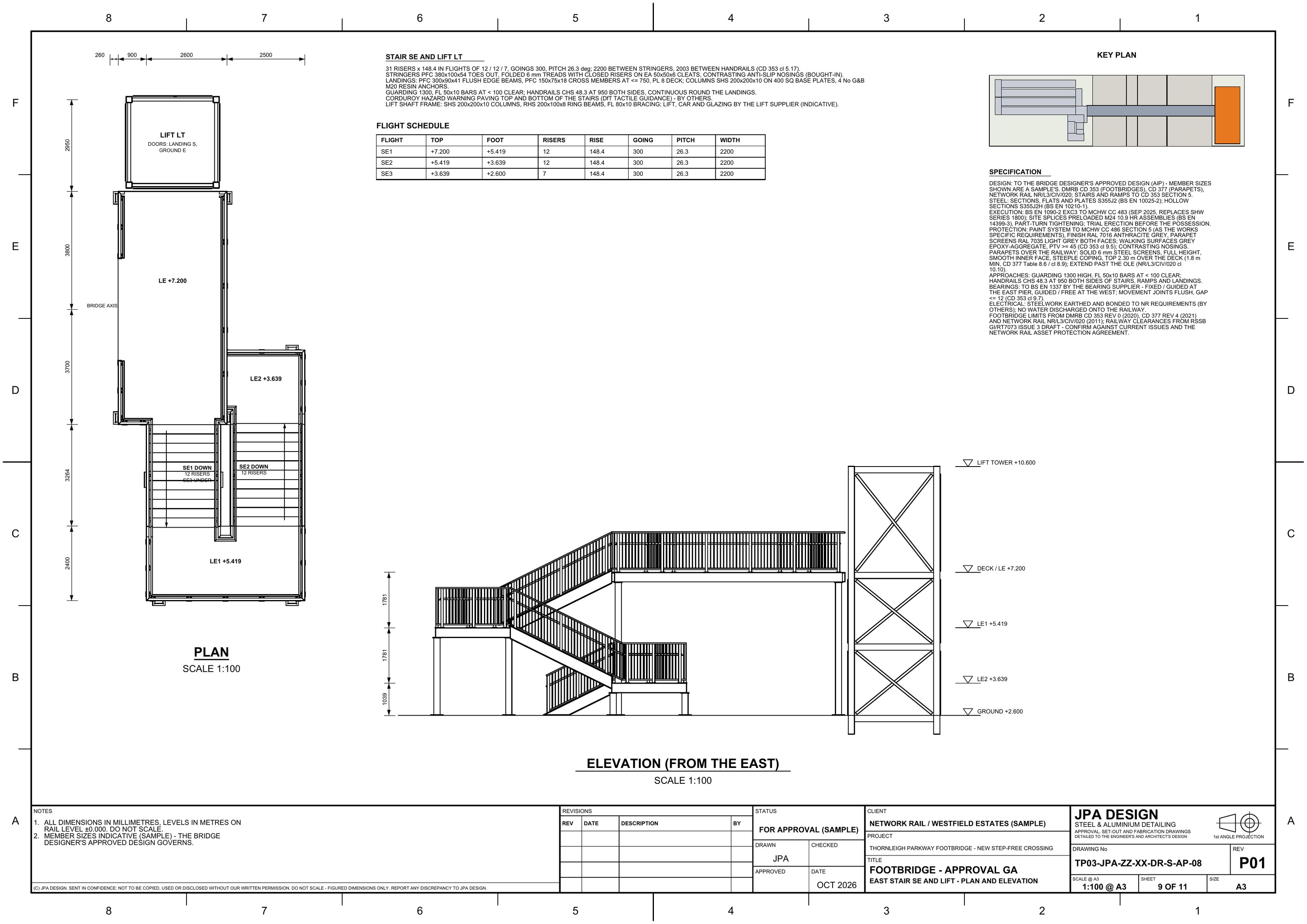

Public stairs to a footbridge
31 risers of 148.4 on 300 goings in 12-12-7 dog-legs, the public-stair limits for a footbridge approach.
Open the sheetFixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| Approval setGA, developed elevations, sections, AD K checks | £295 | 2 days |
| Stair fabrication packPer stair: stringers, treads, landings, marks, plates, DXFs | £595 | 3 days |
| Stair towerTower, flights, landings and guarding, erection sequence | quoted per job |
Your engineer designs the steel; the drawings follow that design.
Glass, bar and post-and-panel balustrades, podium and roof guarding, wall handrails.
Portal frames, multi-storey frames, distribution centres and mezzanines.
Footbridges, catwalks, platforms, pipe racks, hop-overs, ladders and stair towers.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
