Balconies, from the stub to the fascia.

Bolt-on steel balconies, balustrades to concrete balconies, Juliets and remediation. Set out before the slab is poured, signed off by the client, made from a sheet per mark.

Send the drawings See the samples

Ashvale Quarter block A, bolt-on balconies on cast-in stubs, the model and its drawingSample project

First-fix set-outfrom £250

Approval setfrom £295

Fabrication packfrom £595

Quotewithin 4 hours

The pack

What comes back, stage by stage. Take the stages you need.

First fix	Every stub, cast-in or bracket dimensioned off the grids, a schedule by stack, and a 3D set-out sheet per stack the installer can read on site.
Approval	3D views, GA plans and elevations, a section through the connection, and each balustrade option drawn for the client to choose.
Fabrication	Frame GA and sections, connection details, a sheet per mark with its parts list, plates with DXFs, fascia and soffit flat patterns, cut list and bar nesting.
Site	Installation sequence by stack, lift plans with sling legs, loading lists in erection order.

Samples

Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.

Download the sample drawings

PDF, 6 sheets, 2 MB. Ask for the full pack.

AQ15Sample project

Ashvale Quarter

Bolt-on steel balconies on cast-in stubs, and concrete balconies with side-fixed balustrades

Four eight-storey blocks on a boulevard, drawn as a live site. On block B the balconies go on: each frame is lifted in, landed on its Leviat stubs and bolted, and its fascia, soffit and decking follow. Block A is finished: bolt-on stacks on the street side, concrete balconies with post-and-panel balustrades on the courtyard side.

44bolt-on balconies

336stubs cast in

2balustrade types

4blocks

**AQ15**Stack S2, vertical bar balustrades

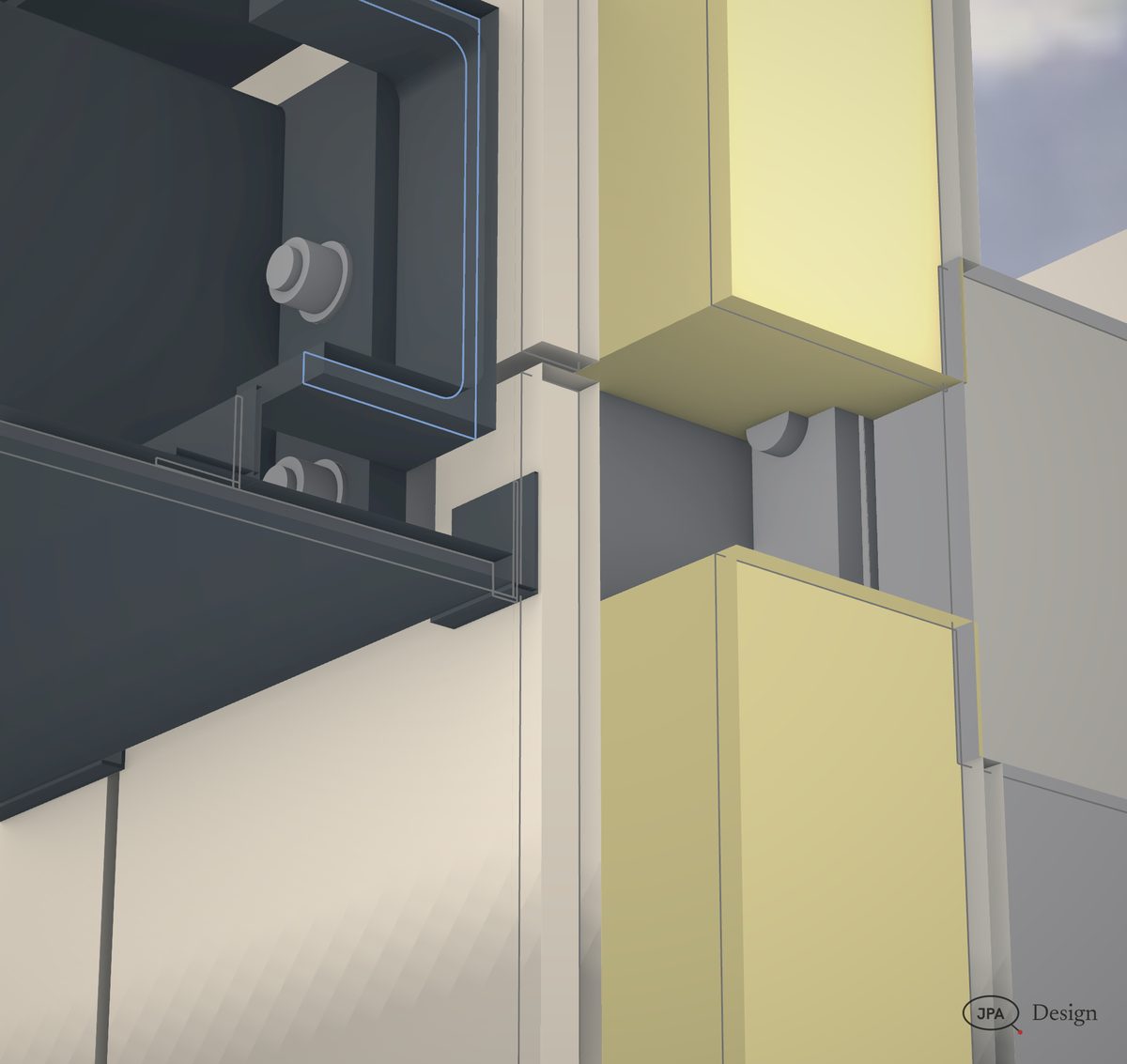

**AQ15**Cut through the frame end: bolts, cleat and the facade build-up behind

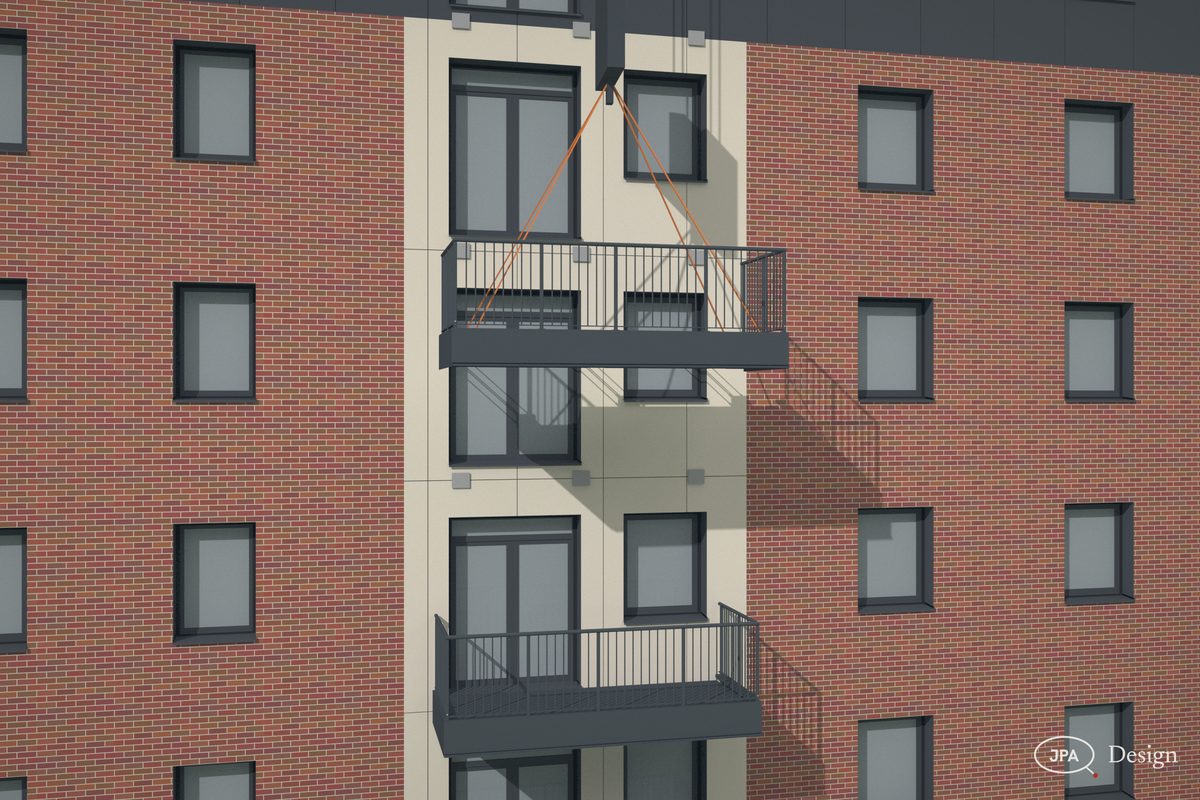

**AQ15**Block B, a balcony on the hook beside its stubs

**AQ15**The courtyard side: concrete balconies, side-fixed post-and-panel balustrades

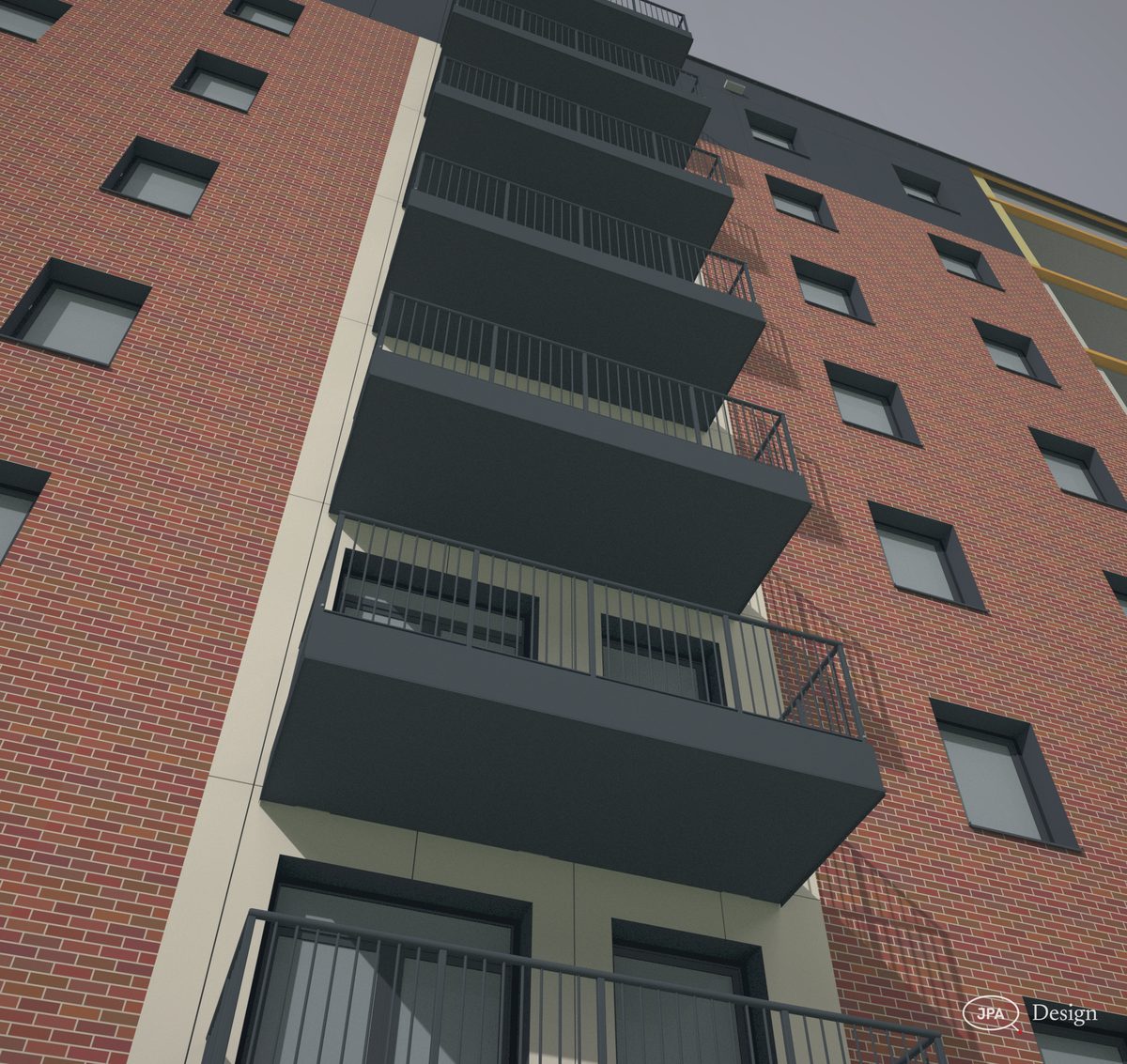

**AQ15**Under a stack: soffits, fascias, the frames on their stubs

MC01Sample project

Meridian Court

34 bolt-on balconies on 14 stacks, three balustrade options

A four-storey concrete frame with balconies on every face. The stubs were set out to the grids before the slabs were poured, the client chose between three balustrades from the approval set, and the frameless type was drawn for the shop.

34balconies

14stacks

23first-fix sheets

20approval sheets

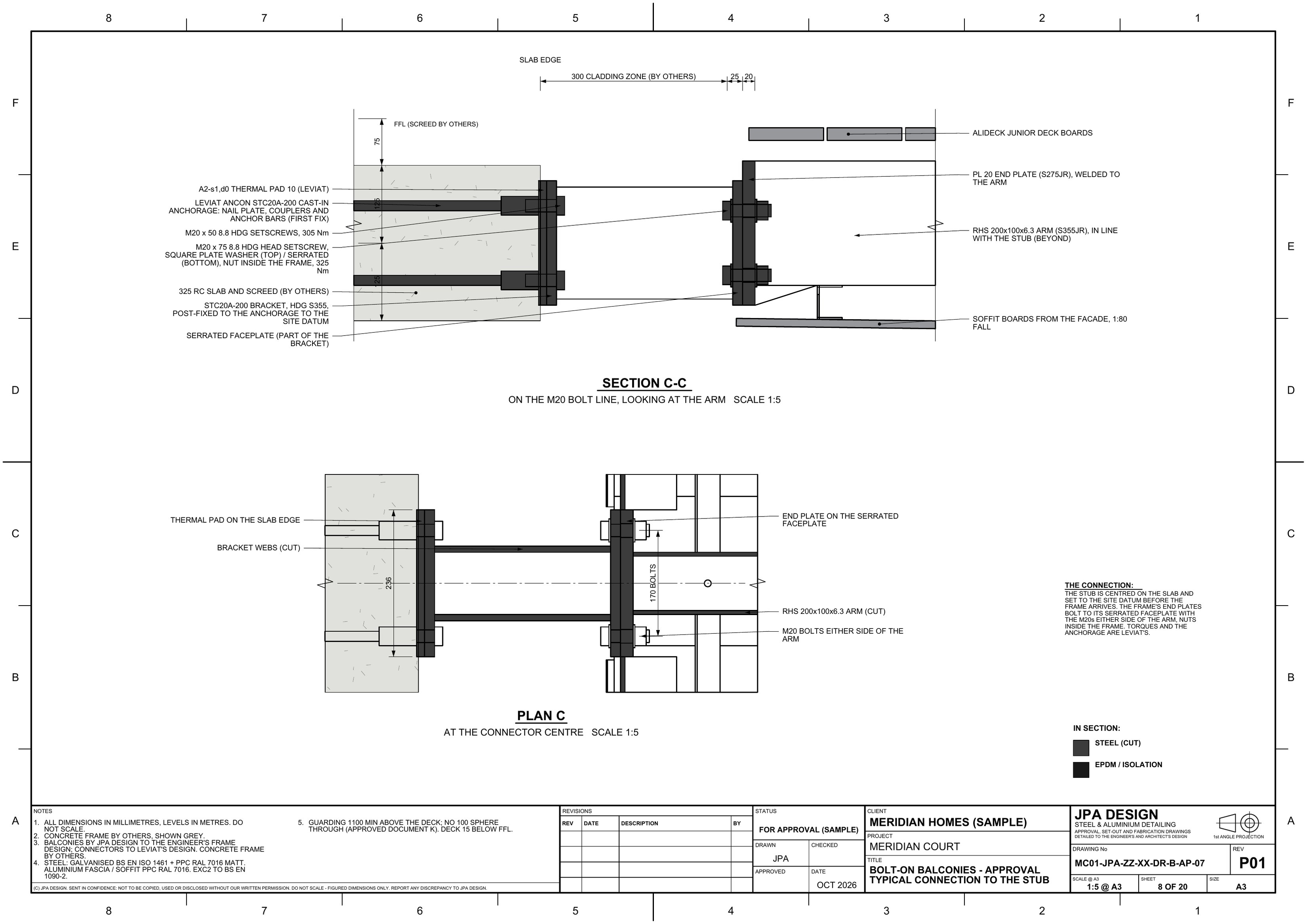

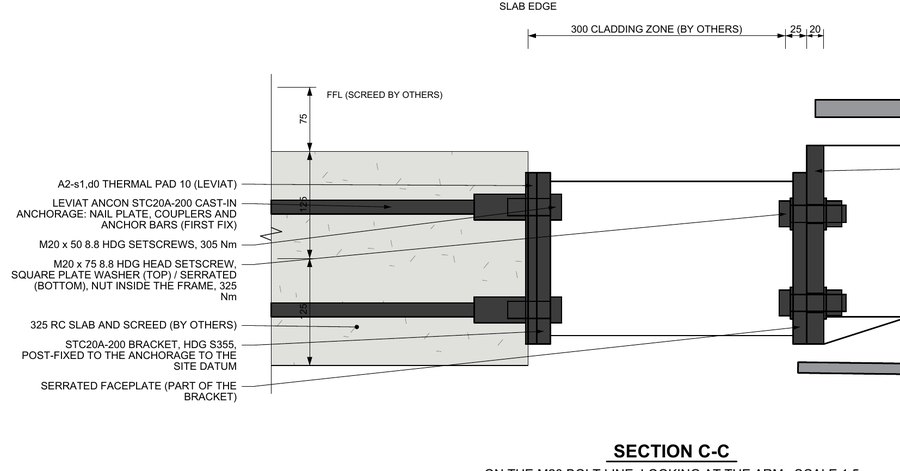

MC01-AP-07 Typical connection to the stub — **MC01-AP-07**Typical connection to the stub, section and plan *1:5 @ A3*

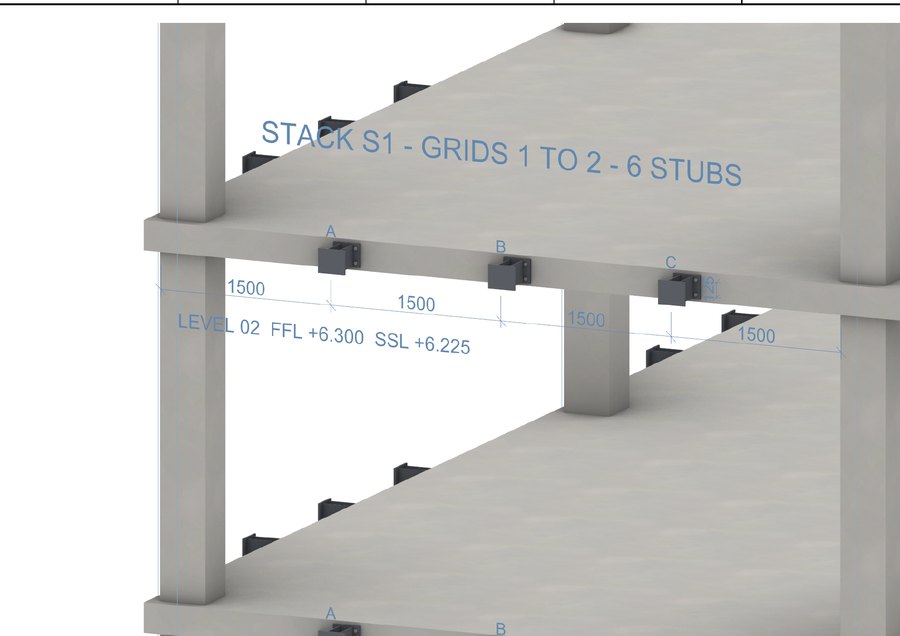

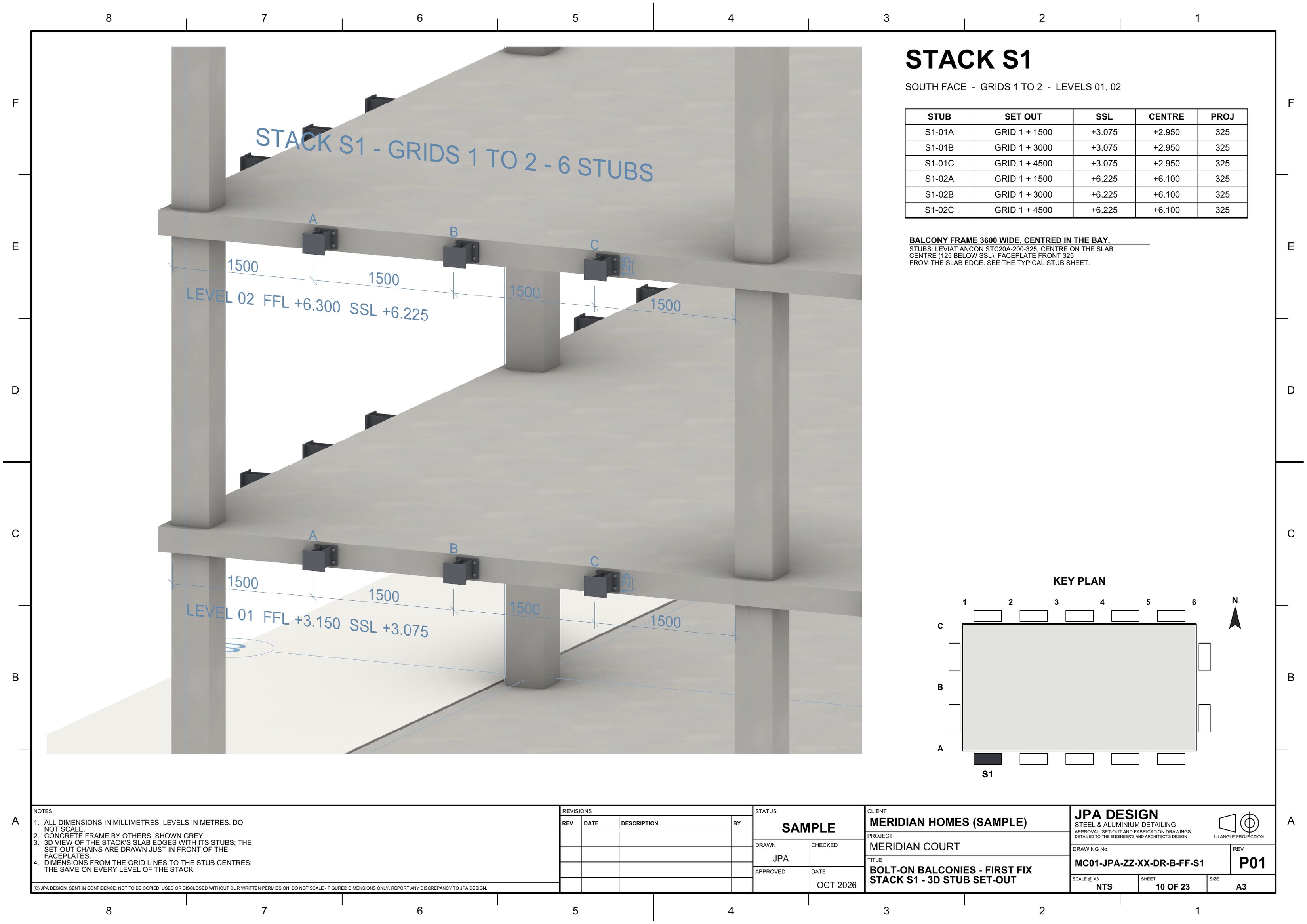

MC01-FF-S1 Stack S1, 3D stub set-out — **MC01-FF-S1**First fix: stack S1 set out in 3D A3

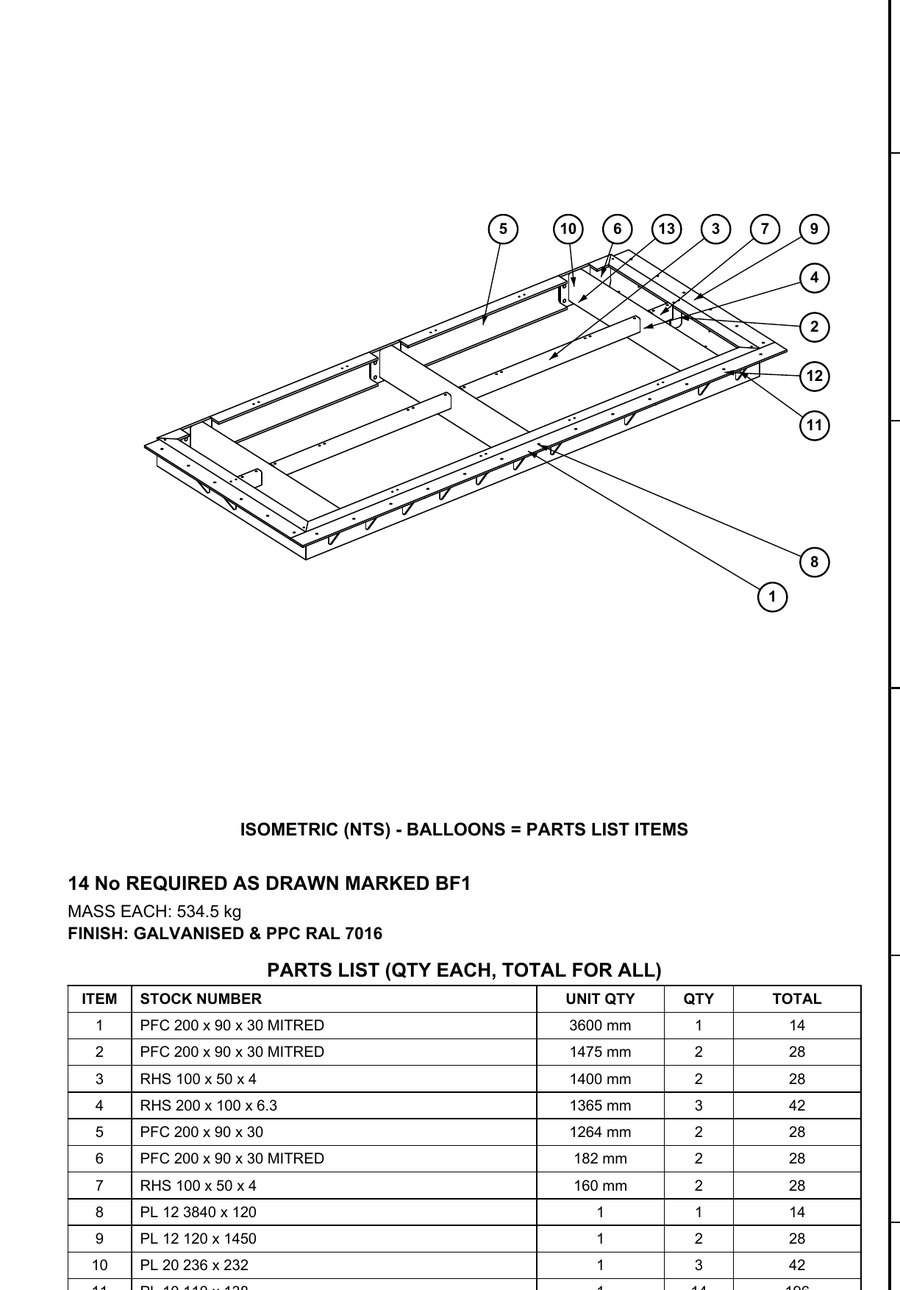

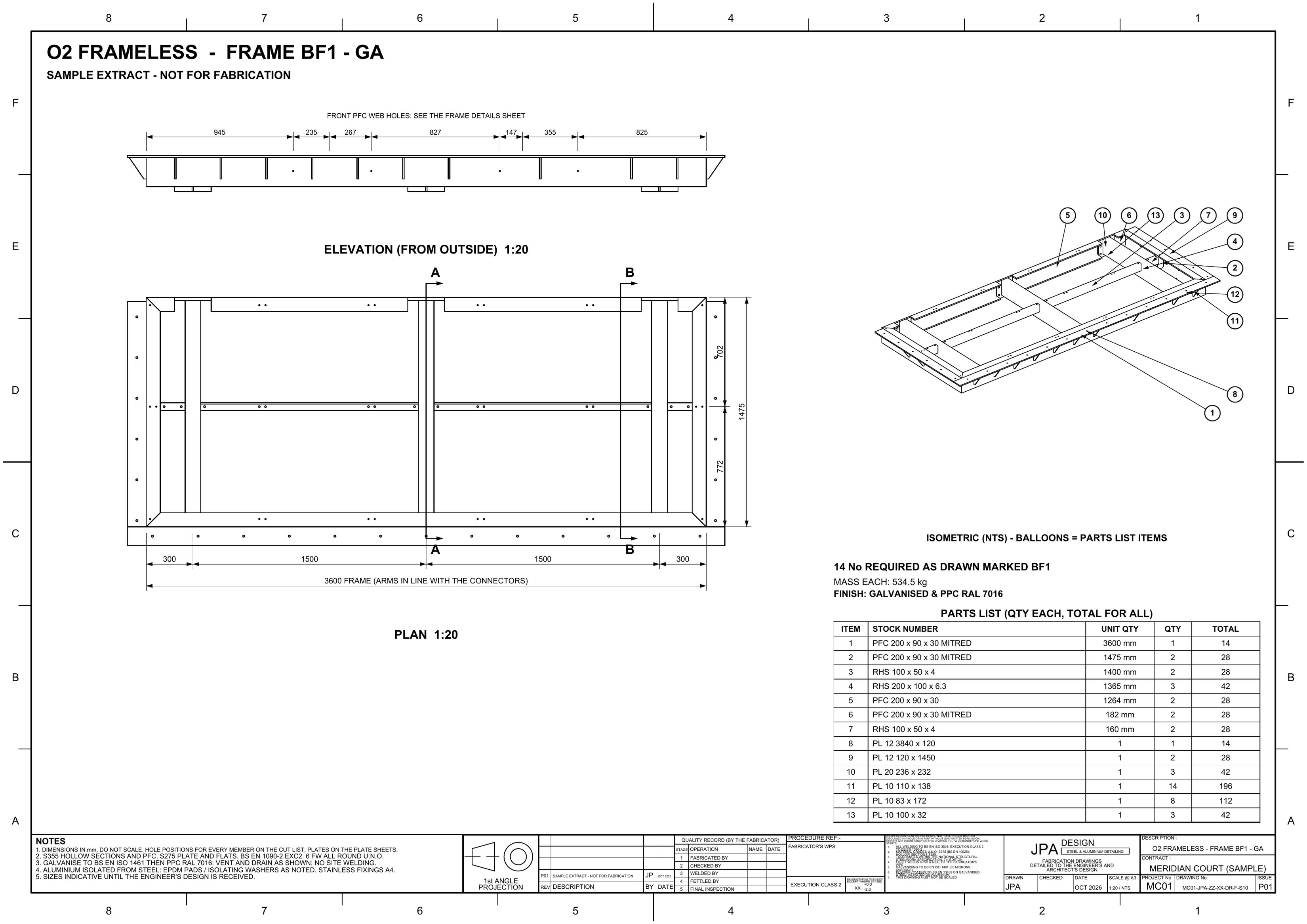

MC01-F-S10 Frame BF1, GA and parts list — **MC01-F-S10**Frame BF1, GA and parts list A3

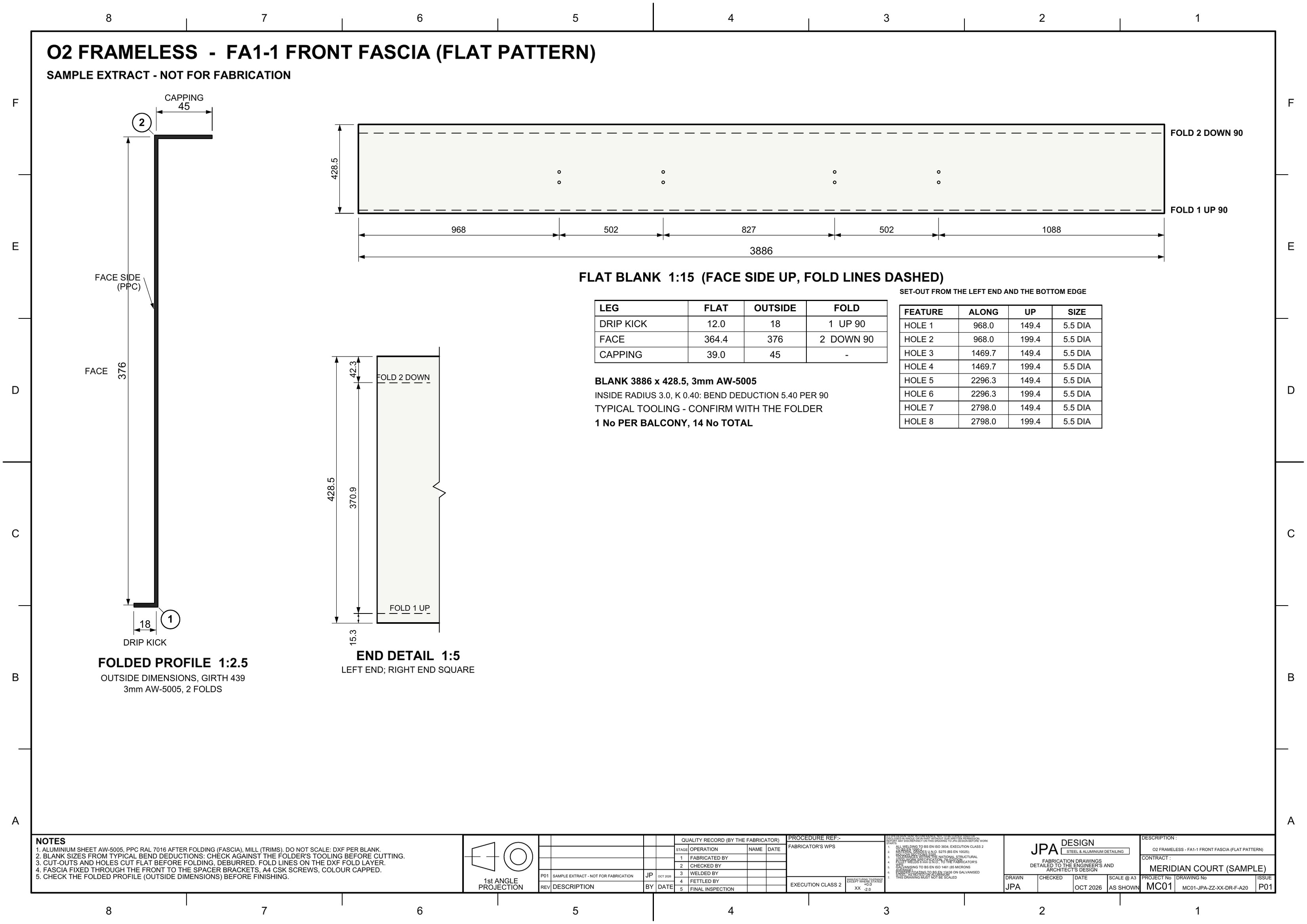

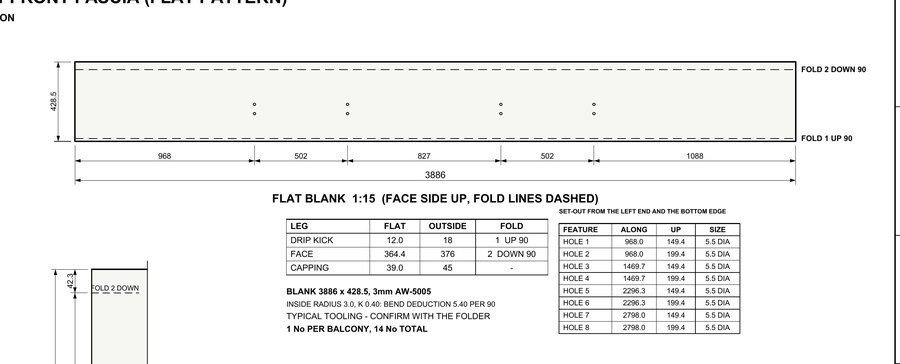

MC01-F-A20 Front fascia FA1-1, flat pattern — **MC01-F-A20**Front fascia, flat pattern A3

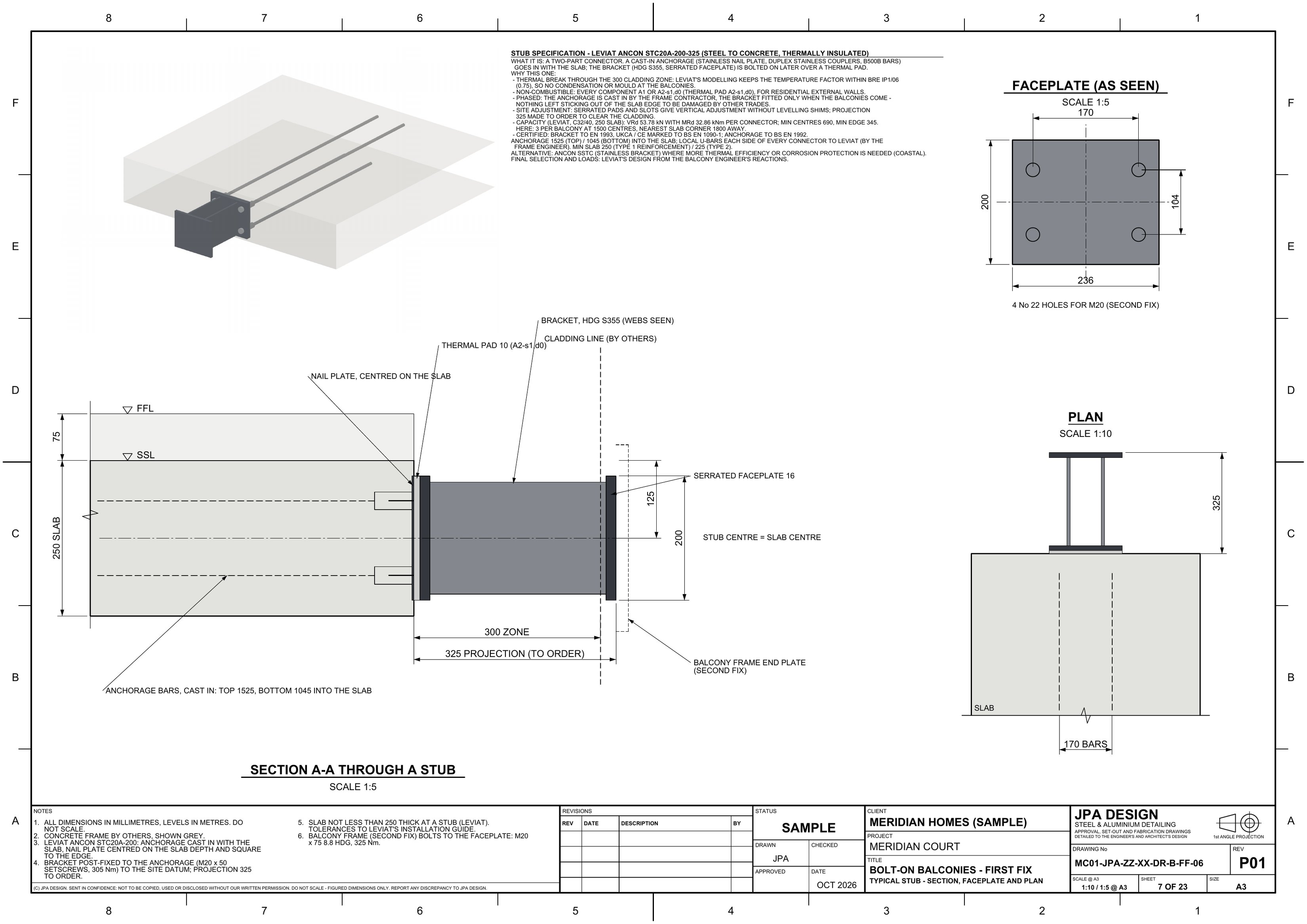

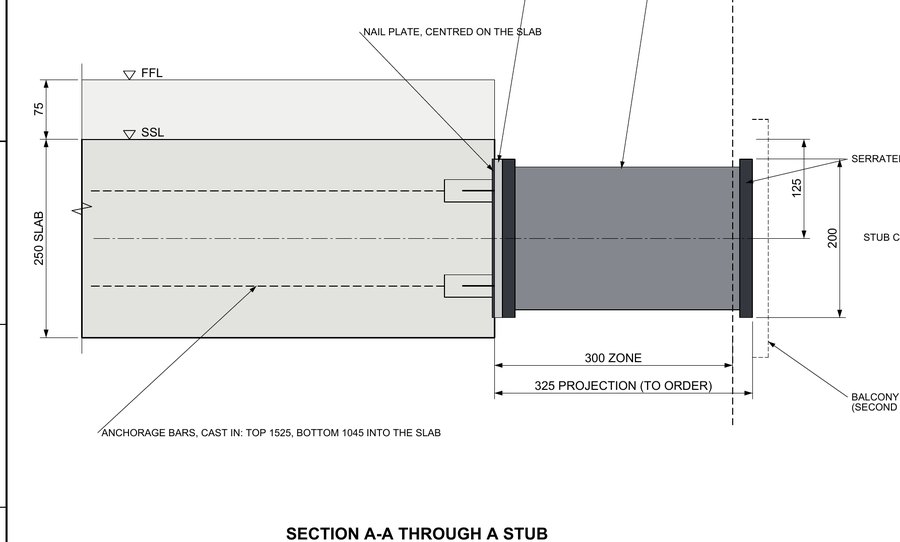

MC01-FF-06 Typical stub, section A-A — **MC01-FF-06**Typical stub, section A-A *1:5 @ A3*

KP10Sample project

Kestrel Point

88 Juliet balconies on a Metsec SFS facade

A twelve-storey block with SFS infill between the slabs. Each Juliet is a flat-bar frame with square bars at 90 clear, its top rail at 1100, held on fins bolted into rivnuts in the boxed SFS jambs, sized to the BS 6180 line load.

88Juliets

6.3 tof Juliet steel

1100top rail AFFL

0.74 kN/mline load

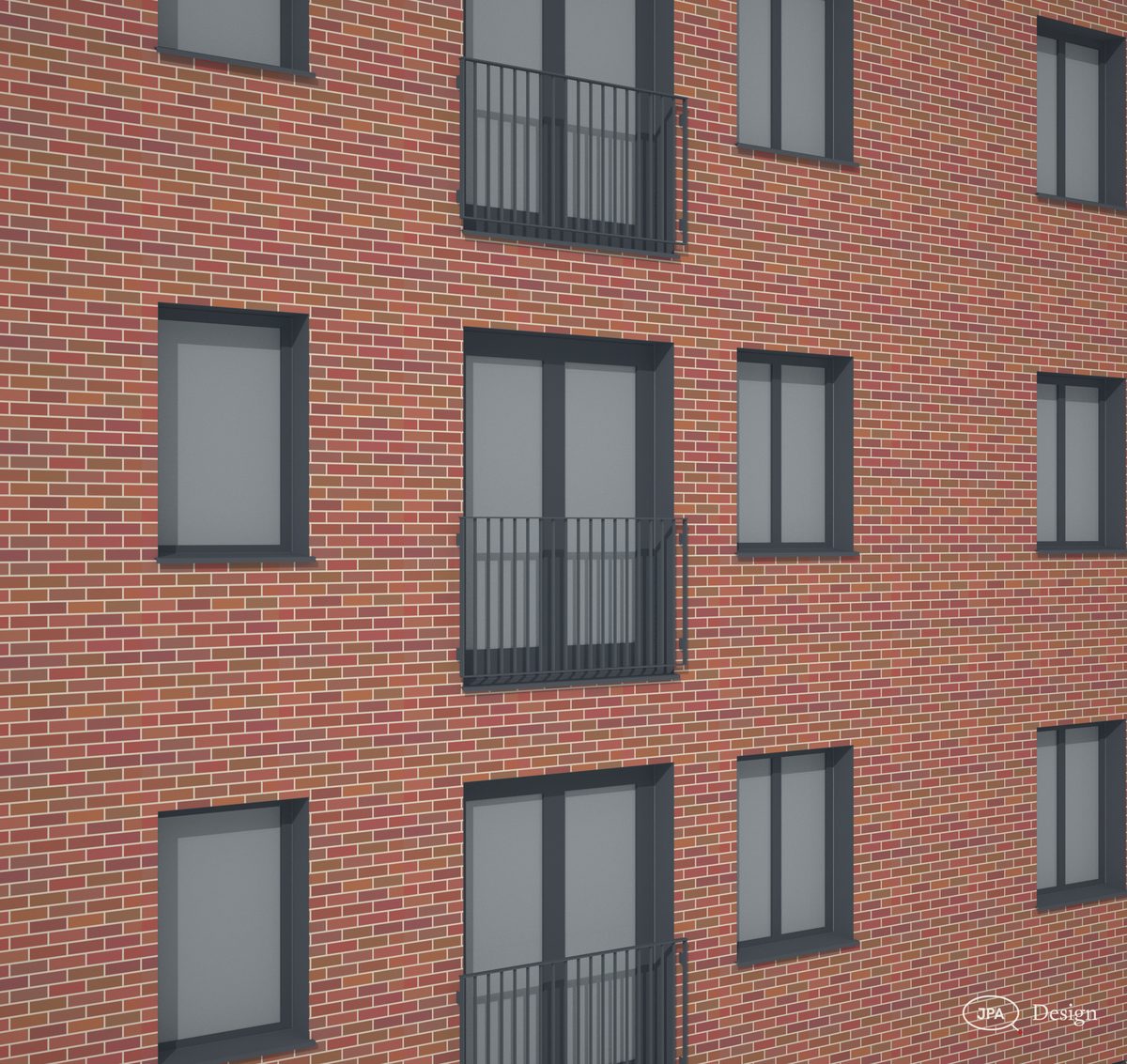

**KP10**A stack of Juliets on the south face

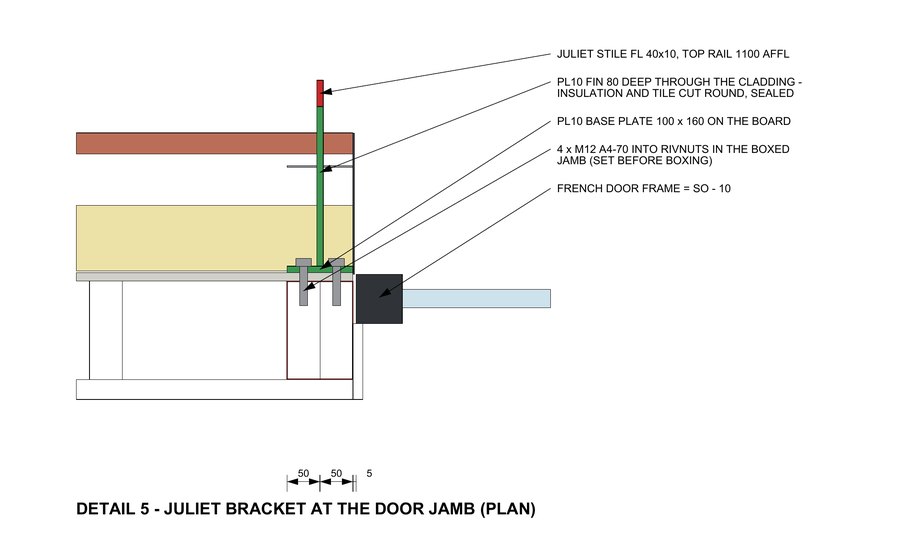

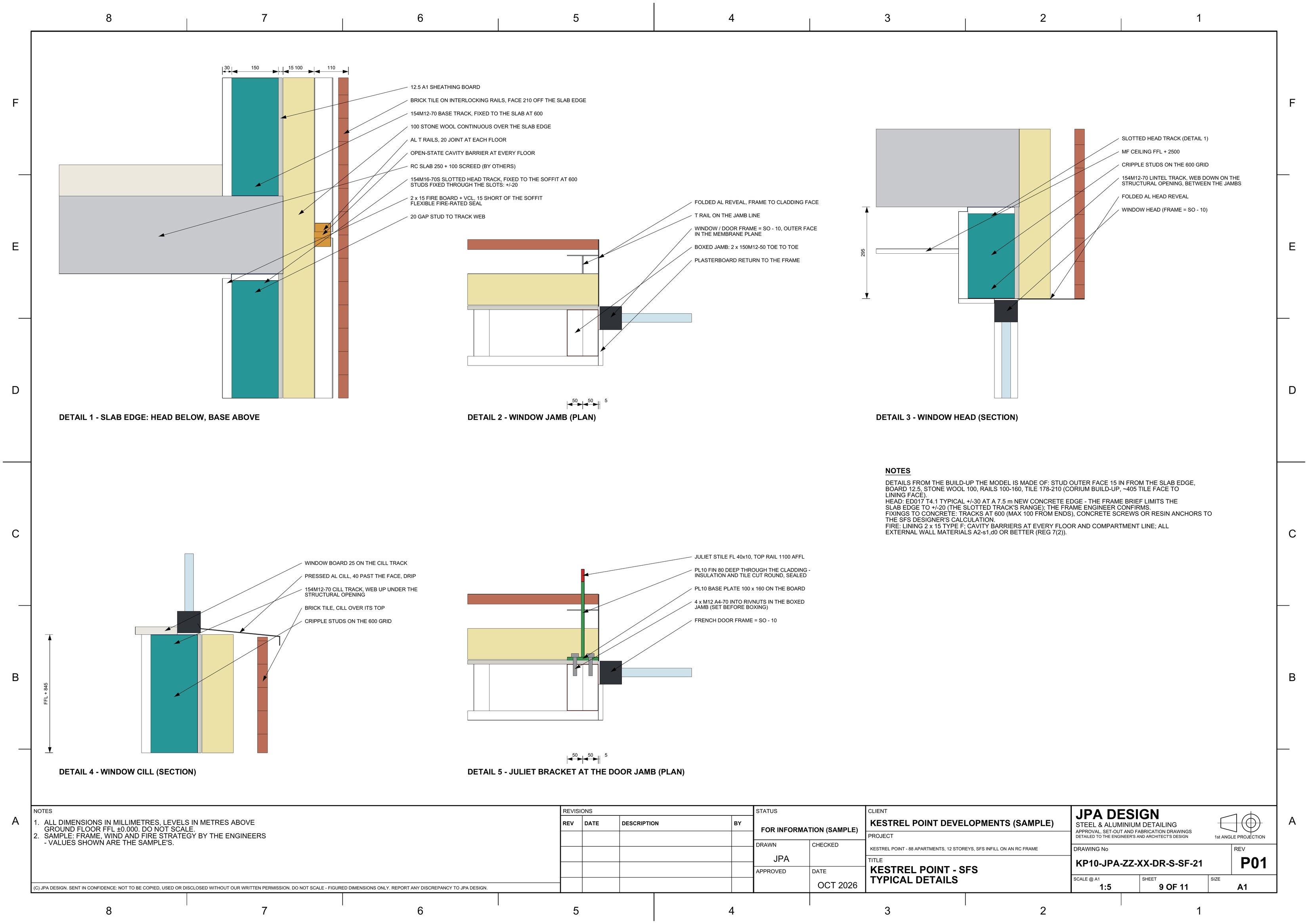

KP10-SF-21 Juliet bracket at the door jamb, plan — **KP10-SF-21**Juliet bracket at the door jamb, plan *1:5 @ A1*

WC13Sample project

Wrexley Court

Balcony remediation on an occupied eight-storey block

28 bolt-on balconies with timber decks and glass and timber rails, replaced in steel. Every balcony surveyed and graded, frames kept, repaired or replaced, and made-to-measure types drawn where the survey says the standard one will not fit.

28balconies

3survey grades

4stacks

0clashes

**WC13**Before: timber decks, glass and timber rails

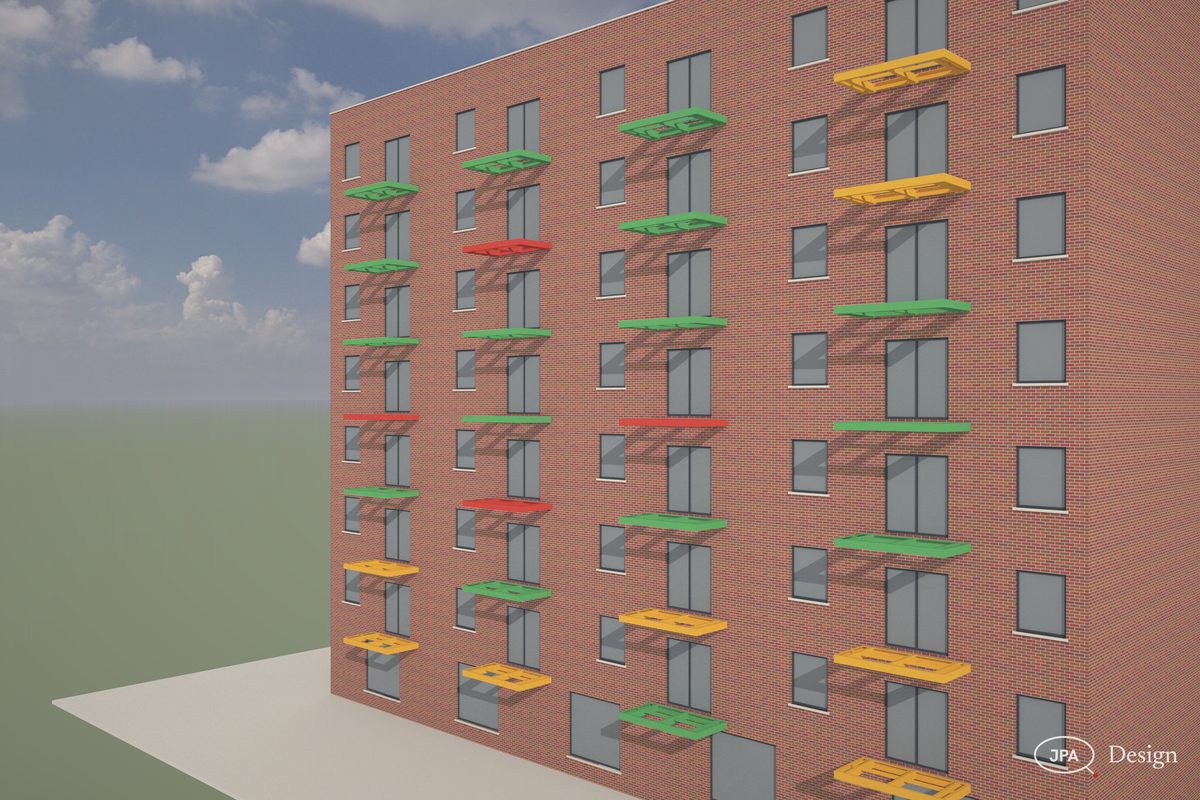

**WC13**Survey: every frame graded sound, repair or replace

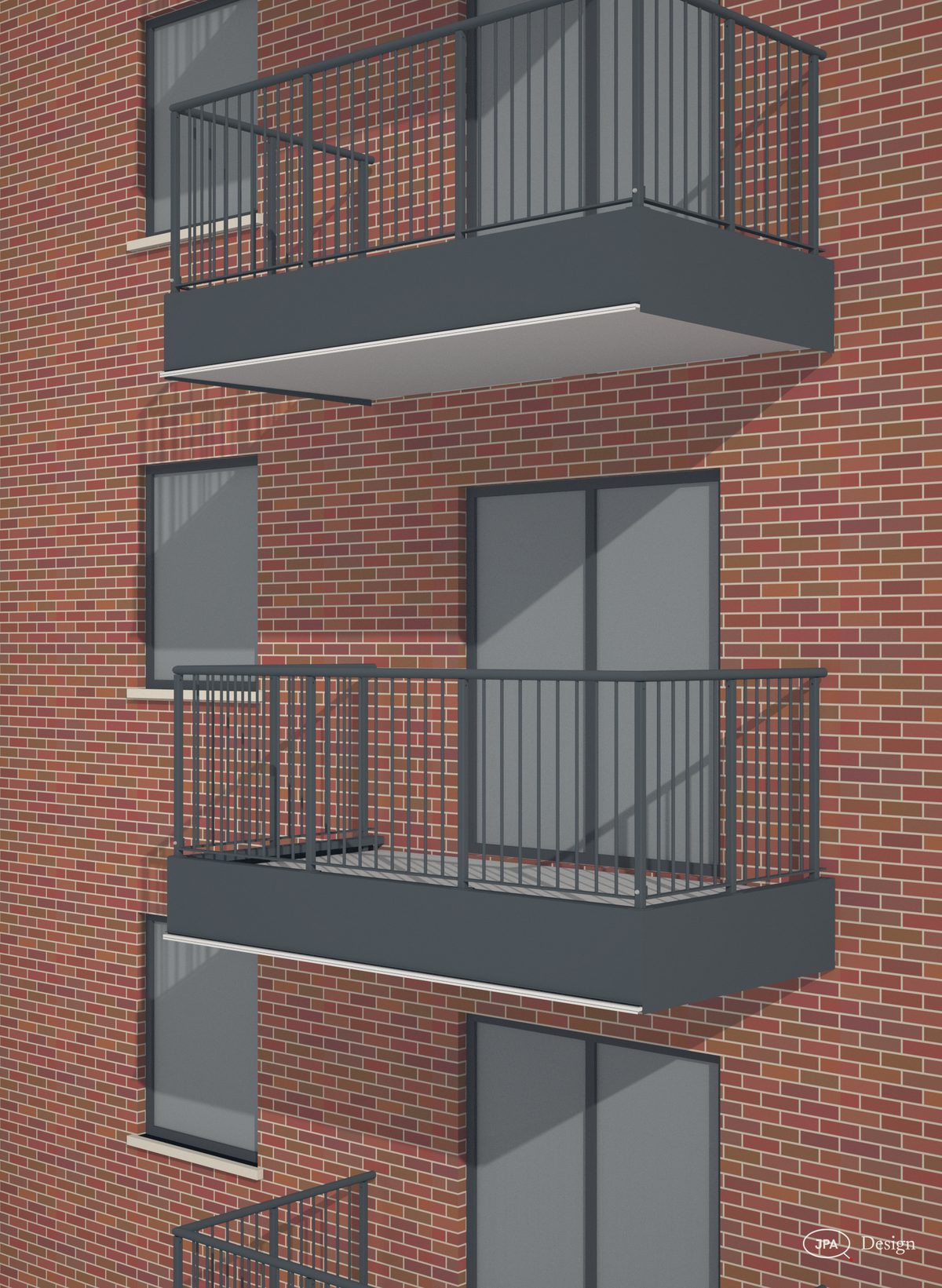

**WC13**After, close: new bar balustrades on the kept frames

Prices

Fixed before any work starts, on your drawings. No VAT charged.

Pack	From	Turnaround
First-fix set-outStubs or cast-ins set out to the grids, with 3D sheets per stack	£250	next day
Approval setRenders, GA plans, elevations, connection section, balustrade options	£295	2 days
Fabrication packPer balcony type: frame, marks, plates and DXFs, flat patterns, cut list	£595	3 days
Remediation survey packSurvey register, deviations, made-to-measure types, golden-thread record	quoted per job

What to send

The architect’s plans, elevations and balcony details
The engineer’s frame, connection and stub design
The balustrade, decking, fascia and soffit specification
A survey of the slab edges where the frame is built

Your engineer designs the steel; the drawings follow that design.

Send the drawings.

Send the drawings and get a fixed price back within four hours.

Emailjamie@jpa-design.co.uk WhatsApp07399 358543 Call07399 358543

Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
