AQ15Sample project
Ashvale Quarter

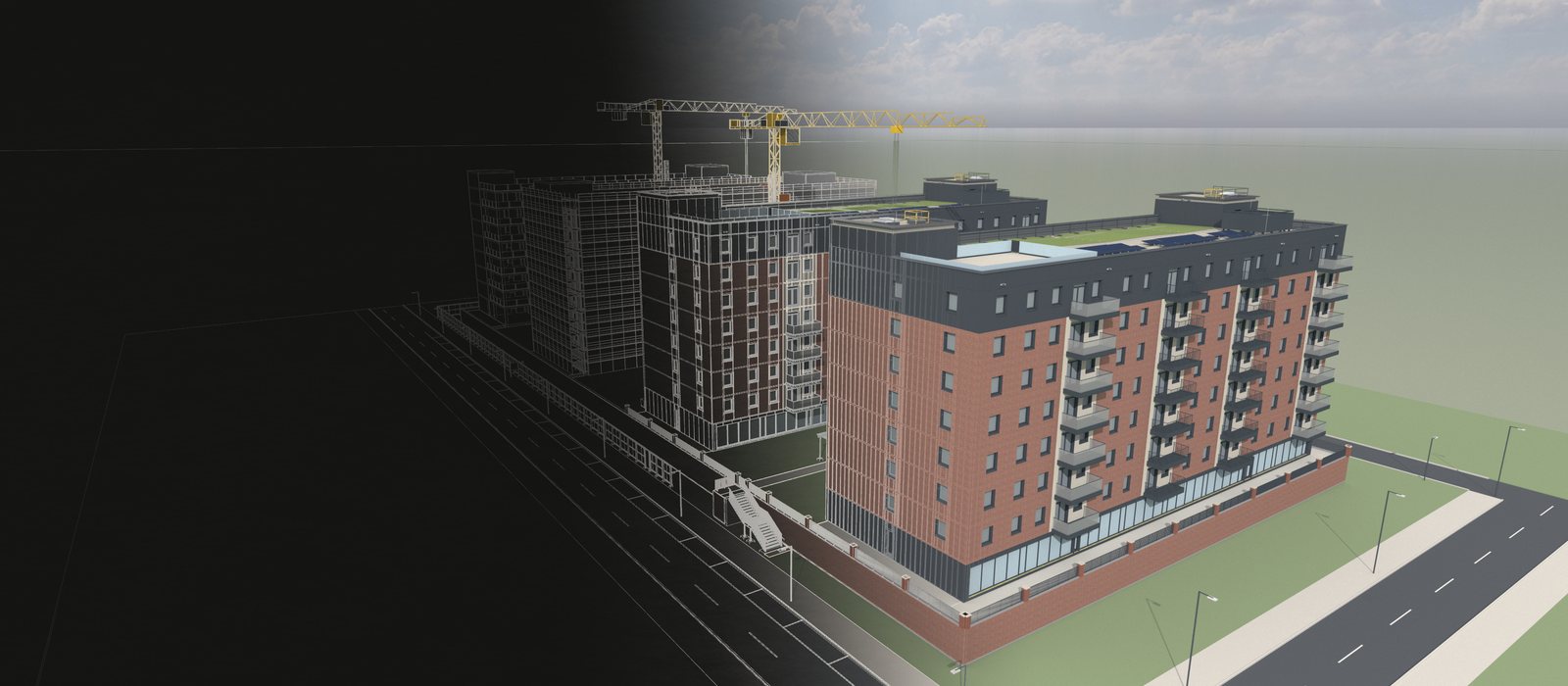

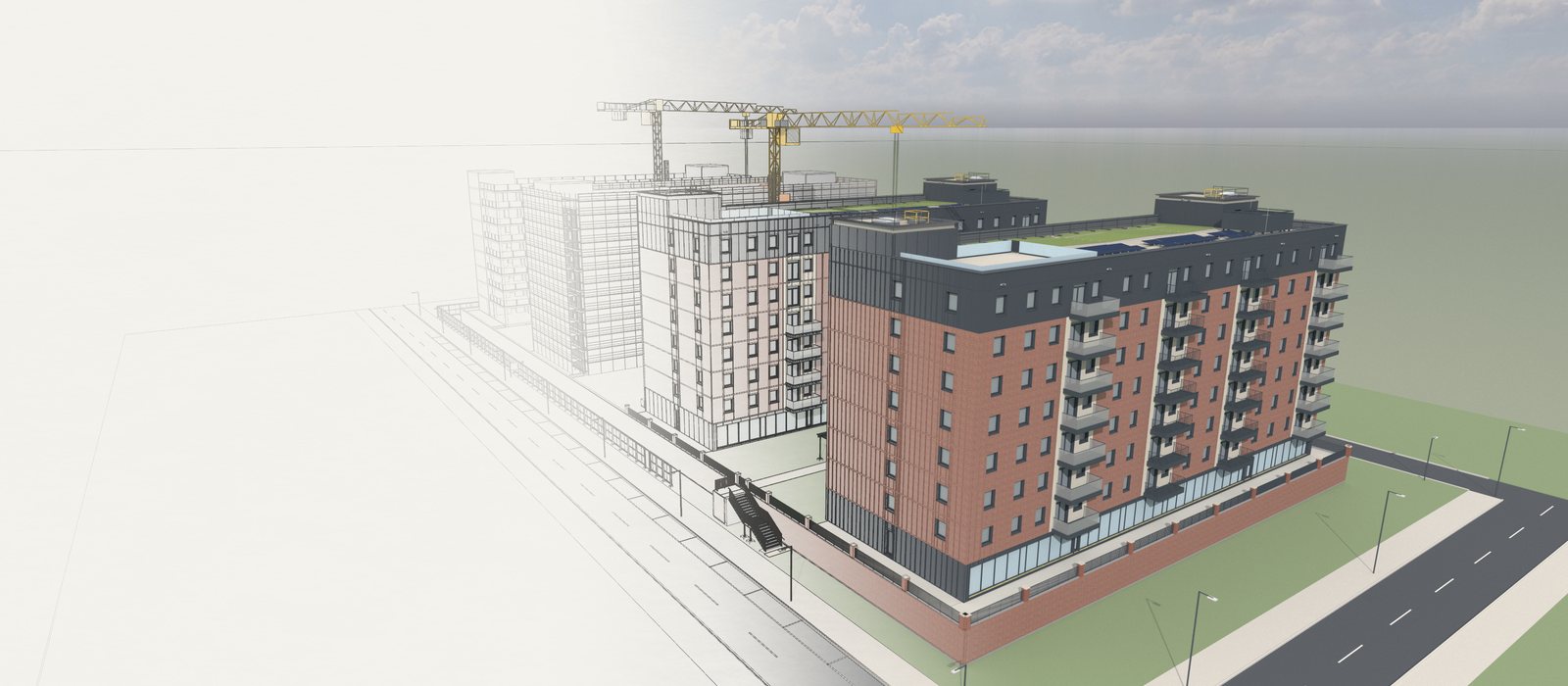

Raytraced renders of a live site
The whole development in sun and sky, raytraced from the same model the drawings come from.
48,500objects
4blocks
6trades
1model
Services/3D visuals
The job, seen before it is built.
Raytraced renders of the job in its true finish, studio shots of each assembly, and connection details cut through in 3D. For the client to sign off, for the tender, for the website.
Ashvale Quarter four blocks as a live site, the model and its drawingSample project
3D visualsfrom £295
With any packadd-on
Turnaround3 days
Quotewithin 4 hours
The pack
What comes back, stage by stage. Take the stages you need.

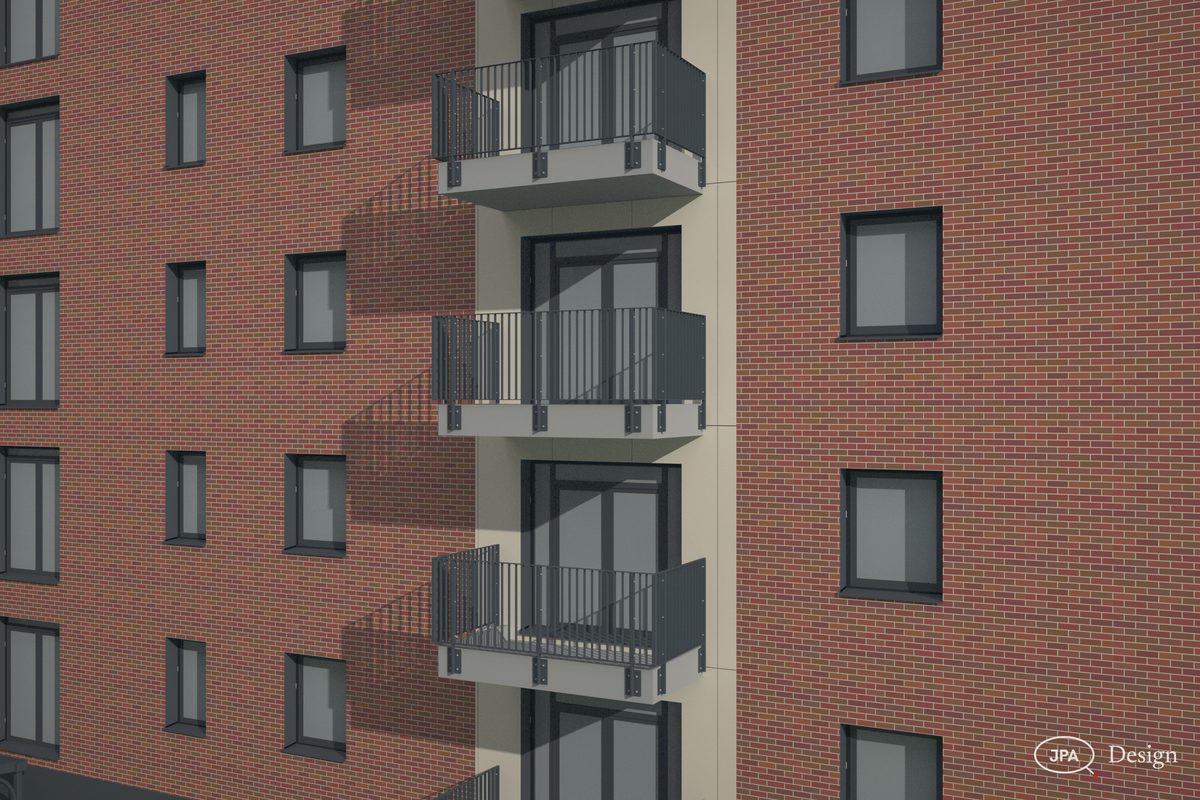

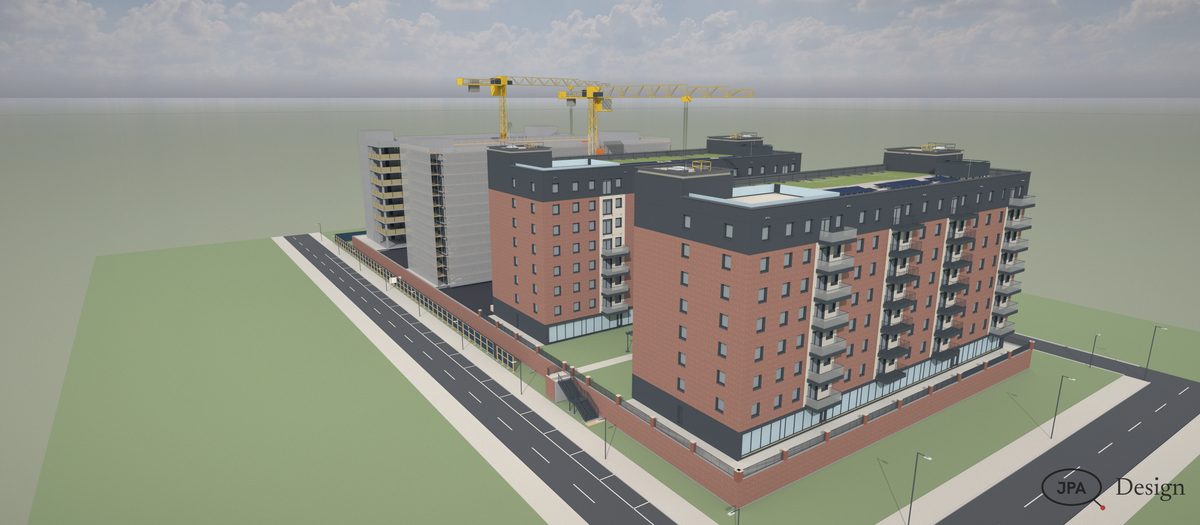

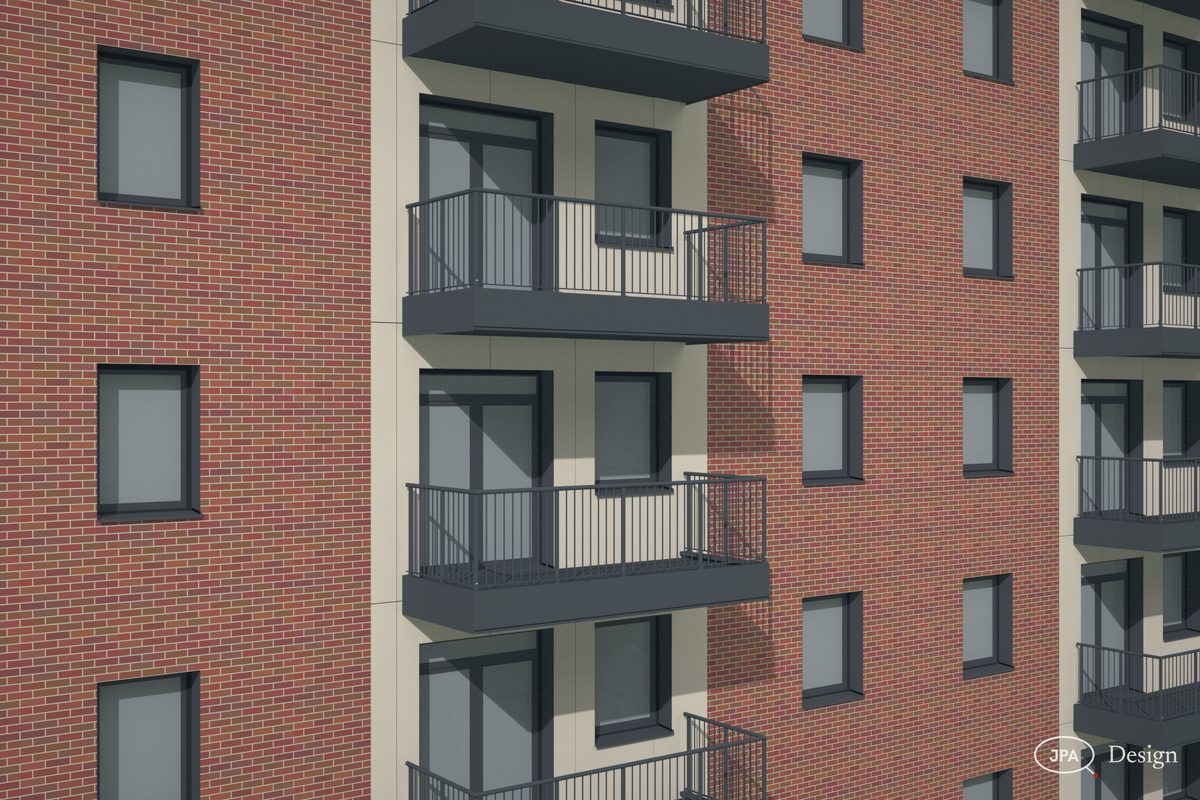

| Site renders | The job in its setting, in sun and sky, from the street, the air and eye level. |
| Studio shots | Each assembly on its own, lit like a product. |
| Cut-aways | Connections cut through in 3D with true section fills. |
| From the model | Every picture is the same model the drawings come from. |
Samples
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
AQ15Sample project

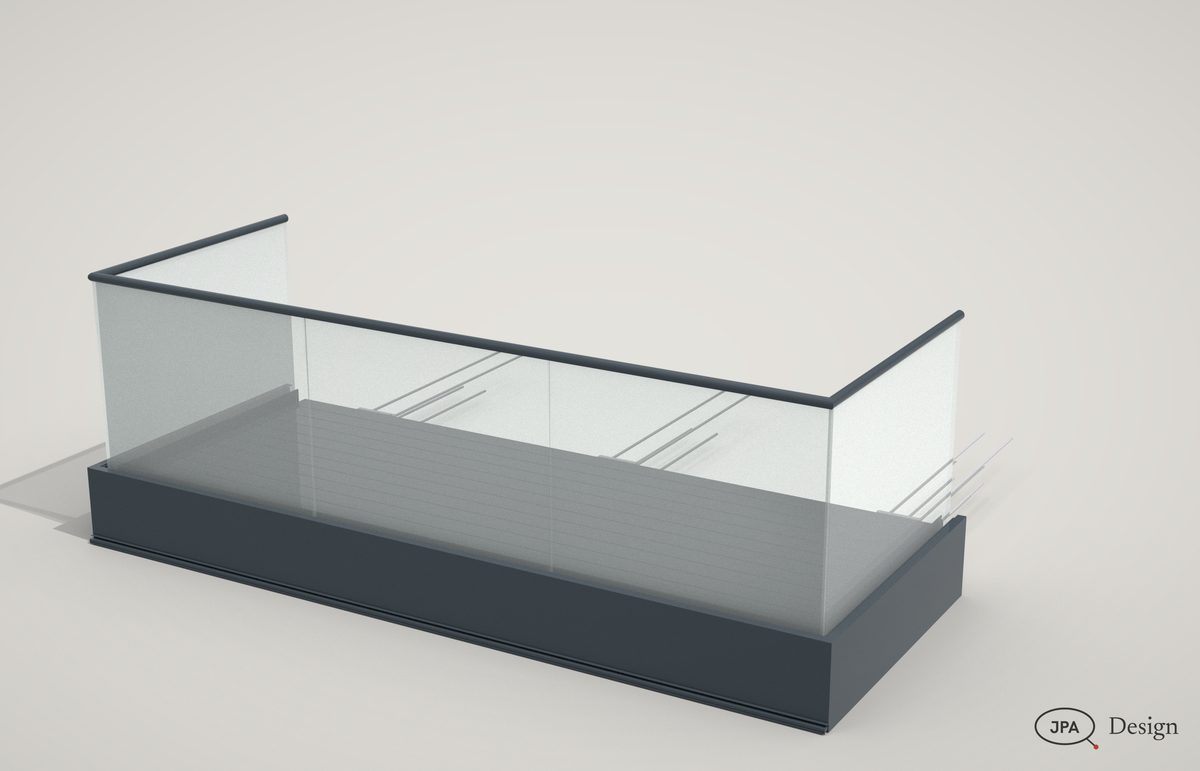

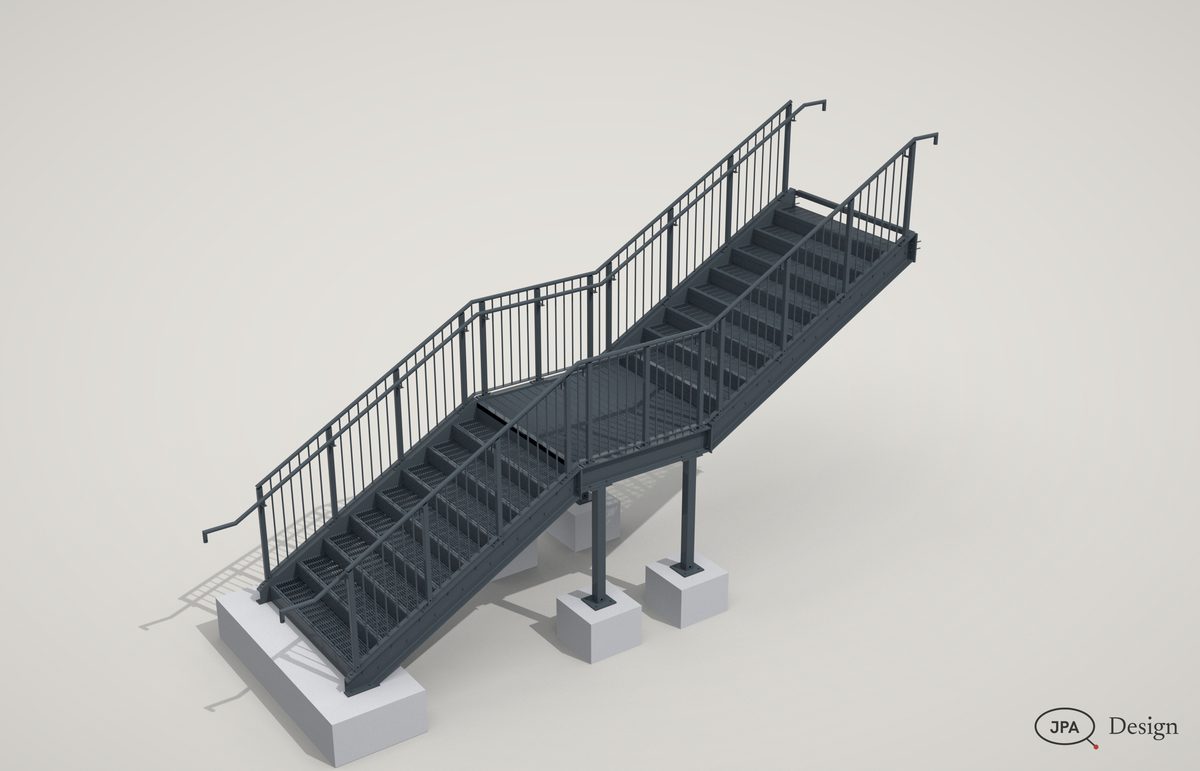

Studio shots
Each assembly on its own, lit like a product

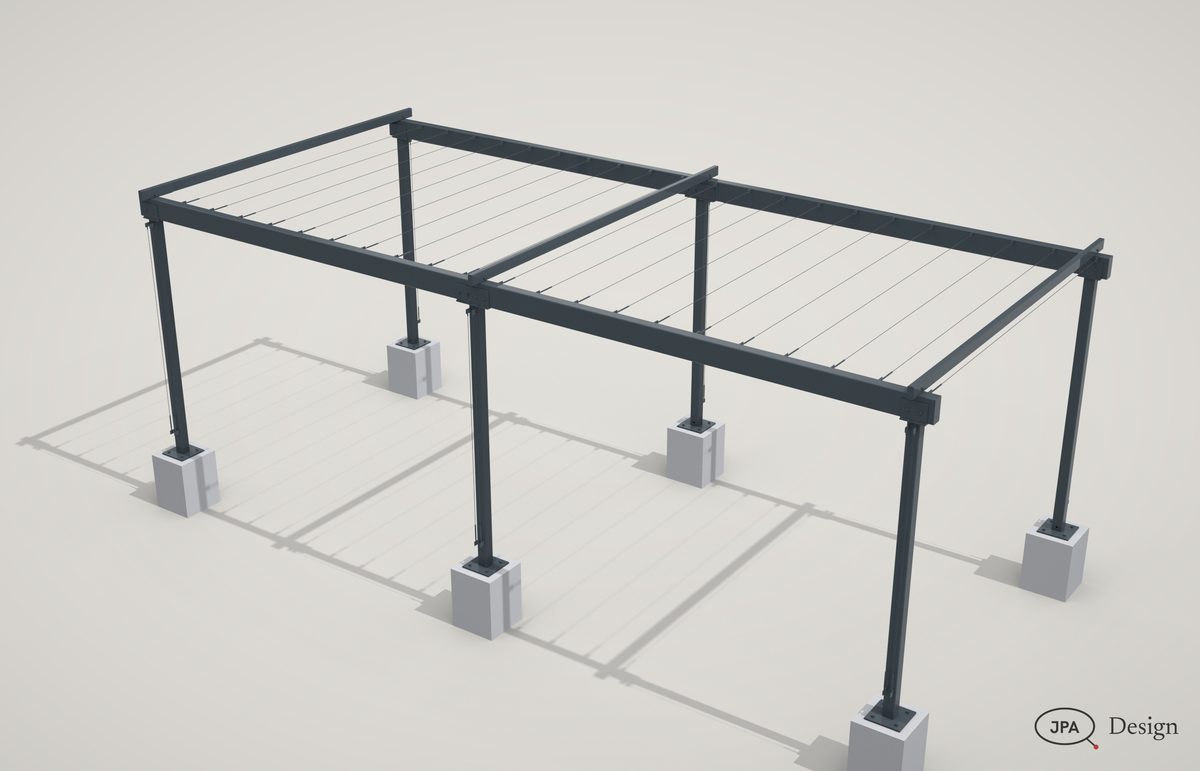

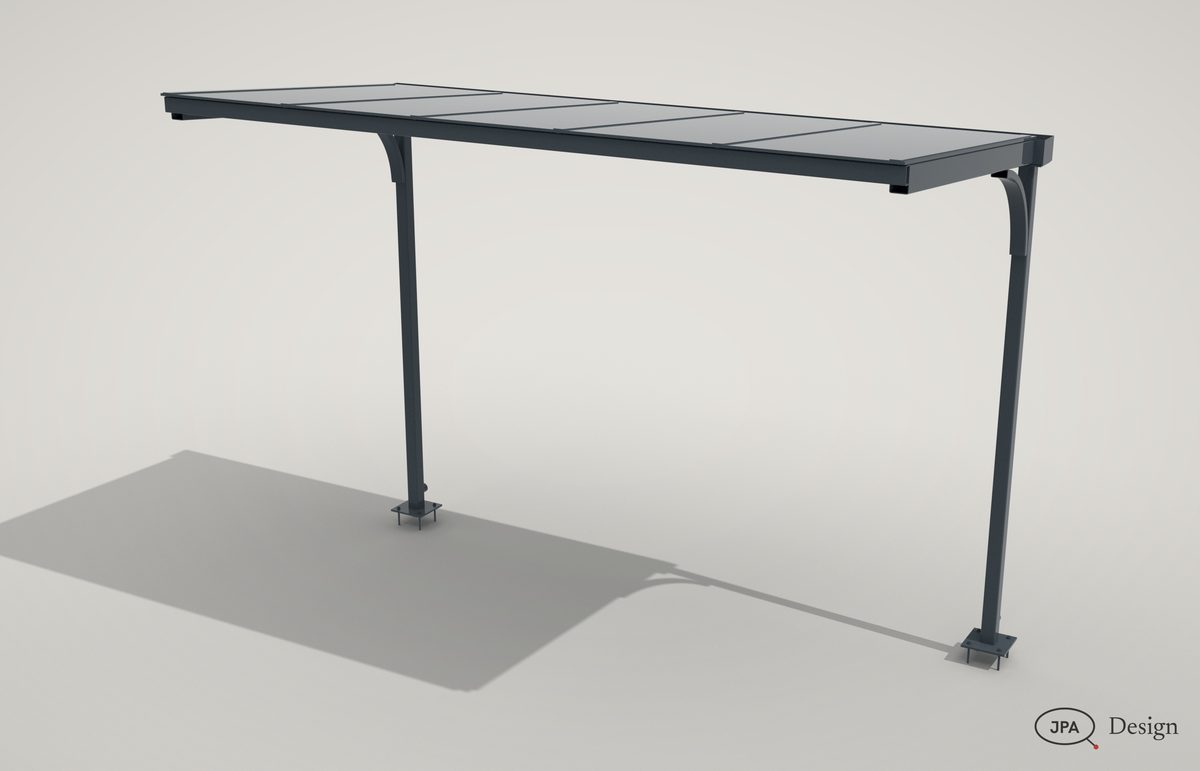

Stairs, balconies, canopies and pergolas taken out of the model and lit on a seamless ground.
6assemblies
2 mina shot
1model
0retouching
U7Sample project

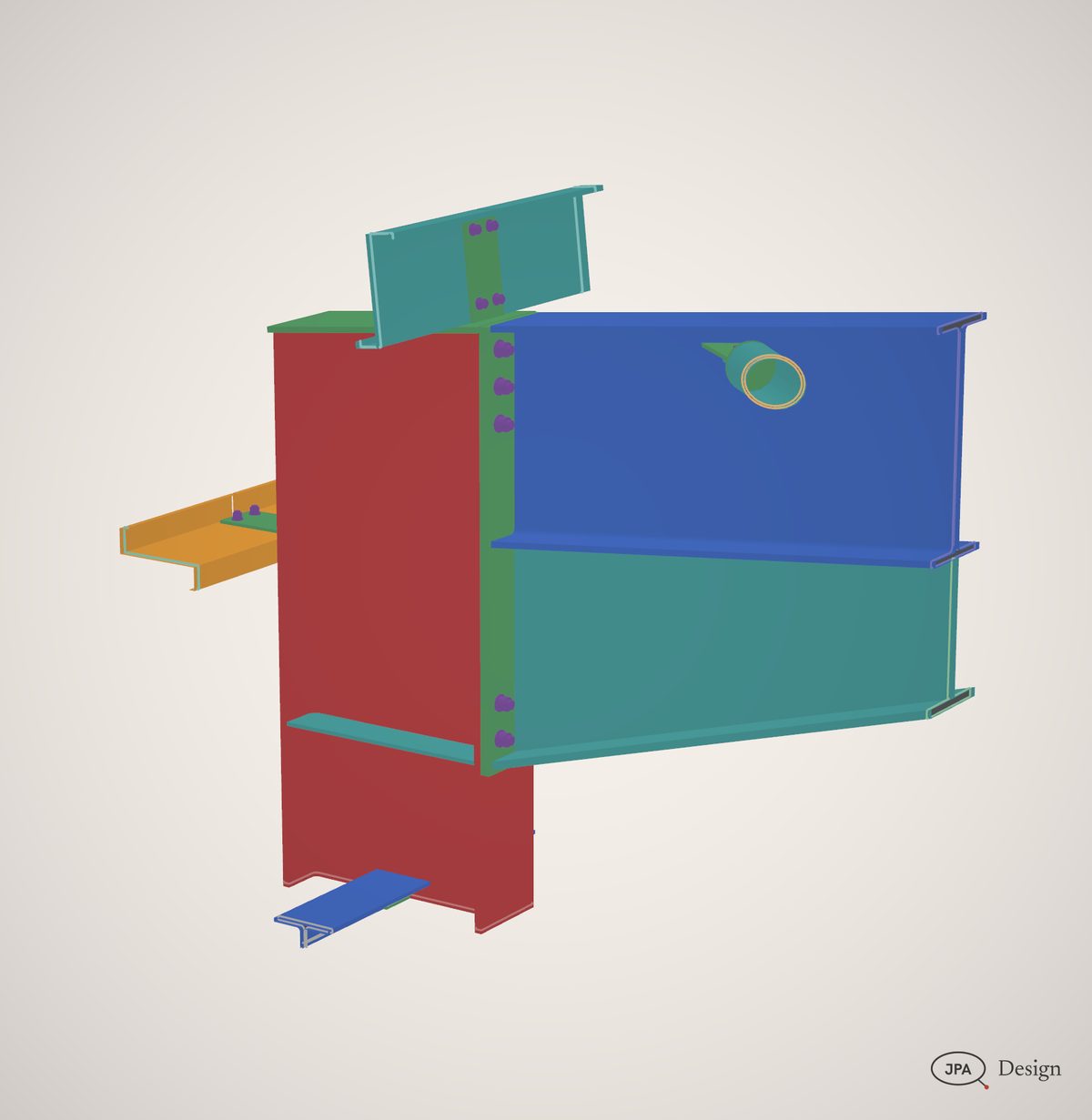

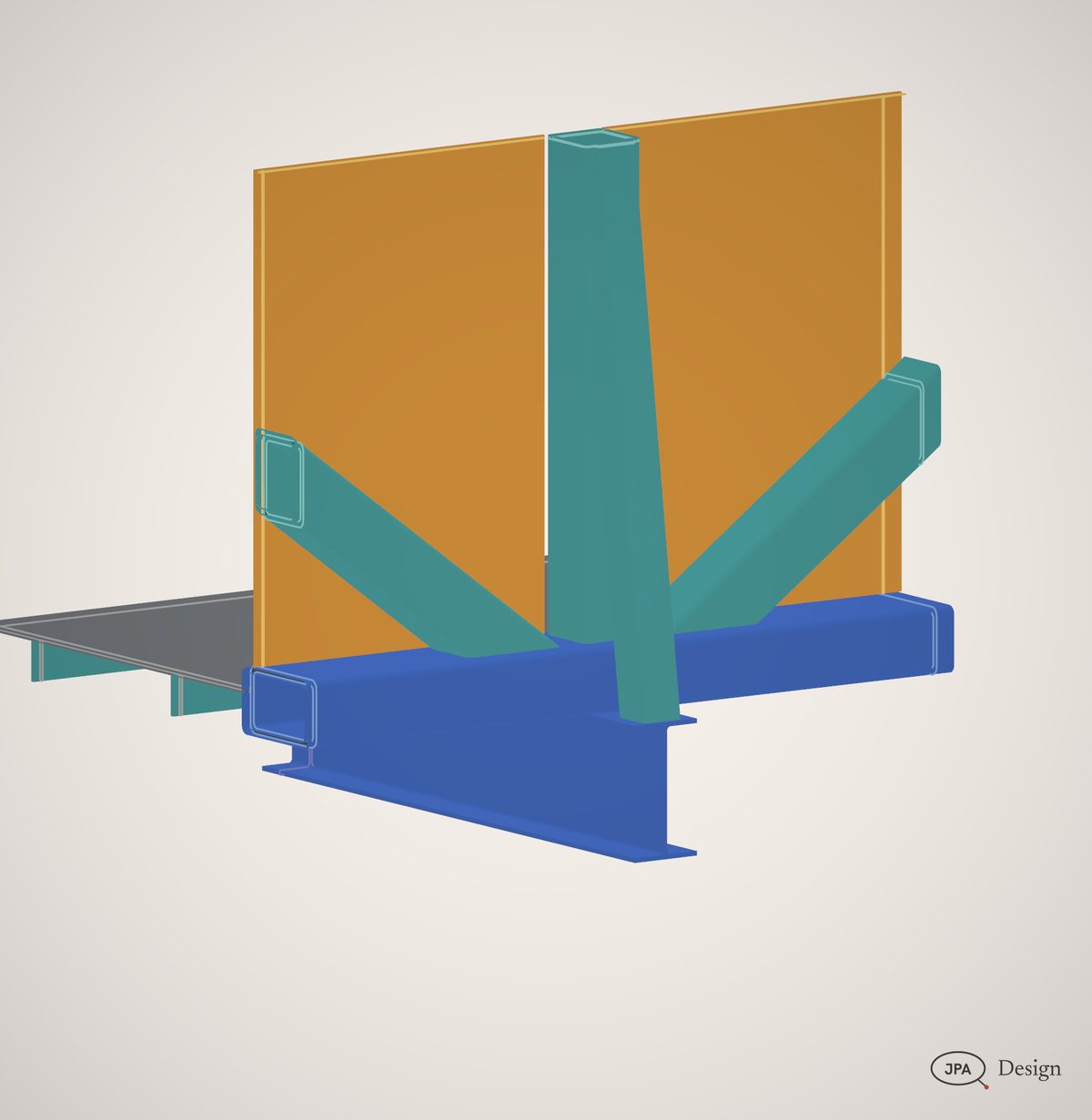

Cut-aways
Connections cut through in 3D, with true section fills
The connection the shop has to make, cut where it matters and seen in 3D.
12details a job
1:1from the model
3samples
0guesswork
Prices
Fixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| 3D visualsRenders, studio shots and cut-aways, with any pack | £295 | 3 days |
What to send
- The drawings, or the model if we already have it
- The finishes and colours
- The views you want
Your engineer designs the steel; the drawings follow that design.
Send the drawings.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
